Varunummer: 3183453

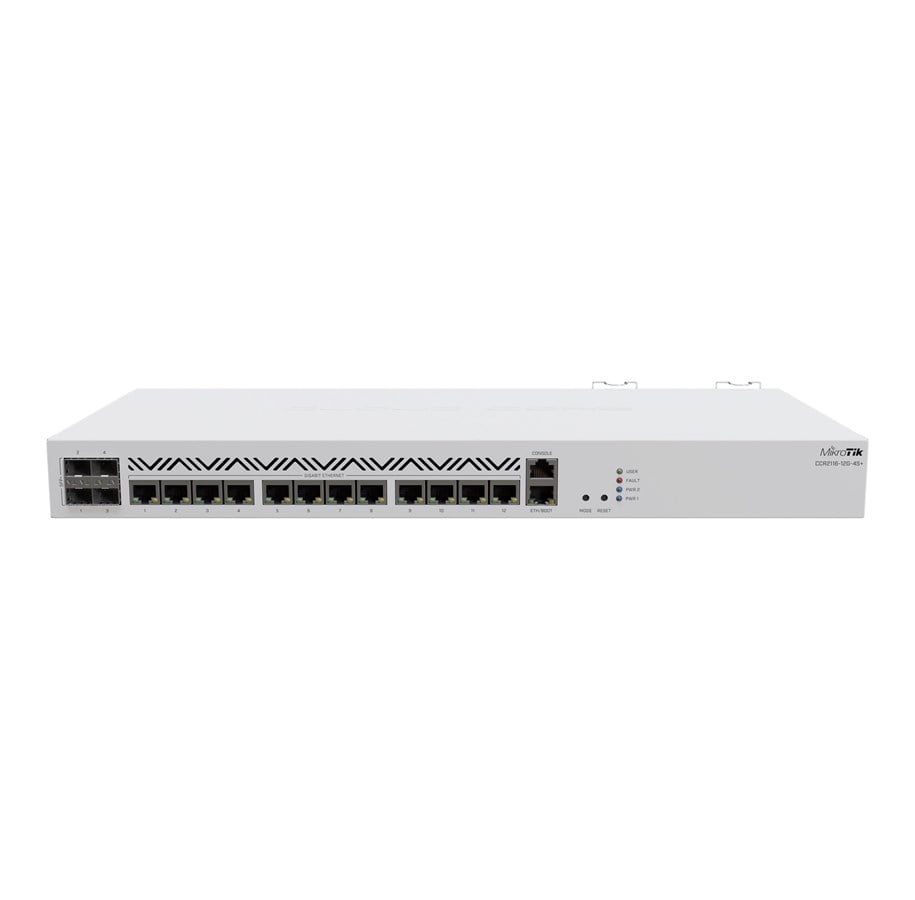

MikroTik CCR2116-12G-4S+ 16-Core 12-Port Gbe / 4-Port 10G SFP+ - Router
Maximize your network performance with the MikroTik CCR2116-12G-4S+, a high-powered Cloud Core Router designed for enterprise and ISP environments. Featuring a 16-core ARM 64-bit CPU and 16 GB of RAM, this router delivers exceptional speed and efficiency for handling complex networking tasks.
- 4x 10G SFP+ ports + 12x Gigabit Ethernet ports for high-speed connectivity
- Supports Layer 3 Hardware Offloading to enhance routing efficiency and performance
- Features an M.2 PCIe slot for expandable storage
- Dual-redundant power supply for uninterrupted operation and reliability
- Compact 1U rackmount design
I lager
Normalpris 9 517,00 kr
9 189,00 kr
7 351,20 kr exkl. moms
Gratis frakt
1 st.
I lager, 1-2 vardagars förväntad leveranstid
The CCR2116-12G-4S+ allows you to forget about CPU limitations in your setup. Like its younger brother - the amazing CCR2004, this router features the mighty Amazon Annapurna Labs Alpine CPU.
There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then it has Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.
Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If you look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.
If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations. This is the right device for you. Combination of raw power and utility with the reliable 10G networking.
CCR2116-12G-4S+: technology tested by time, built for the future.
There are four 10G SFP+ ports. They have a separate, full-duplex line connected to the Marvell Aldrin family switch chip. Then it has Gigabit Ethernet ports. 12 of them are running through the Marvel chip. And there is another Gigabit port connected directly to the CPU. For management purposes.
Each group of 4 ports has a separate full-duplex connection to the switch chip. No bottlenecks here. You can expect switch-like throughput in most setups. The new generation of processors offers mind-blowing performance. If you look at the CCR1036 - the powerhouse with a 36 core CPU, the new CCR2116 can easily double the performance. 16 cores vs 36 cores. Double the performance. Or even more.
If you are a rather large ISP, dealing with dynamic routing, massive BGPs, complex firewall rules, and intricate quality of service configurations. This is the right device for you. Combination of raw power and utility with the reliable 10G networking.
CCR2116-12G-4S+: technology tested by time, built for the future.
Producent
Varunummer
3183453
Modell
CCR2116-12G-4S+
EAN
4752224007919
Till producentens hemsida
Produktbeskrivning
MikroTik Cloud Core Router CCR2116-12G-4S+ - router - skrivbordsmodell, rackmonterbar
Typ av enhet
Router
Modell
Skrivbordsmodell, rackmonterbar
Datalänkprotokoll
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Prestanda
Routinggenomströmning (1518-byte paketstorlek): up to 3212.2 Kpps
Nätverksprotokoll
BGP
Funktioner
4 fläktar, återställningsknapp, lägesknapp, Marvell 98DX3255 brytarchip, PCB-temperaturövervakning, full duplex
Strömtillförsel
AC 100-240 V (50/60 Hz)
Dimensioner (BxDxH)
44.3 cm x 19.9 cm x 4.4 cm
Allmänt
Typ av enhet
Router
Modell
Skrivbordsmodell, rackmonterbar
Anslutningsteknik
Kabelansluten
Datalänkprotokoll
Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Prestanda
Routinggenomströmning (1518-byte paketstorlek): up to 3212.2 Kpps
Nätverksprotokoll
BGP
Funktioner
4 fläktar, återställningsknapp, lägesknapp, Marvell 98DX3255 brytarchip, PCB-temperaturövervakning, full duplex
Standarder som följs
RoHS, EAC, IC
Processor
1 x Annapurna Labs AL73400 2 GHz
RAM
16 GB DDR4 SDRAM
Flash-minne
128 MB
Inbyggda enheter
Temperature sensor
Statusindikatorer
Länk/akvititet, fel, användare, ström 1, ström 2
Expansion/Anslutning
Gränssnitt
12 x 10Base-T/100Base-TX/1000Base-T - RJ-45
4 x 10Gb Ethernet - SFP+
1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - Ethernet/boot
Konsol: 1 x RJ-45
4 x 10Gb Ethernet - SFP+
1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 - Ethernet/boot
Konsol: 1 x RJ-45
Expansionskortplatser
1 M.2
Strömtillförsel
Nätdel
Intern strömförsörjning
Redundant ström
Ja
Installerat antal
2 (installerad) / 2 (max)
Nätspänning
AC 100-240 V (50/60 Hz)
Energiförbrukning vid drift
60 watt
Diverse
Inkluderade tillbehör
8 skruvar, 2 st. nätkablar, K-57 fästset
Rackmonteringssats
Inkluderat
MTBF (genomsnittstid mellan fel)
200,000 timmar
Programvara / Systemkrav
Medföljande OS
MikroTik RouterOS
Dimensioner och vikt
Bredd
44.3 cm
Djup
19.9 cm
Höjd
4.4 cm
Miljöparametrar
Min temperatur vid drift
-20 °C
Max temperatur vid drift
60 °C
