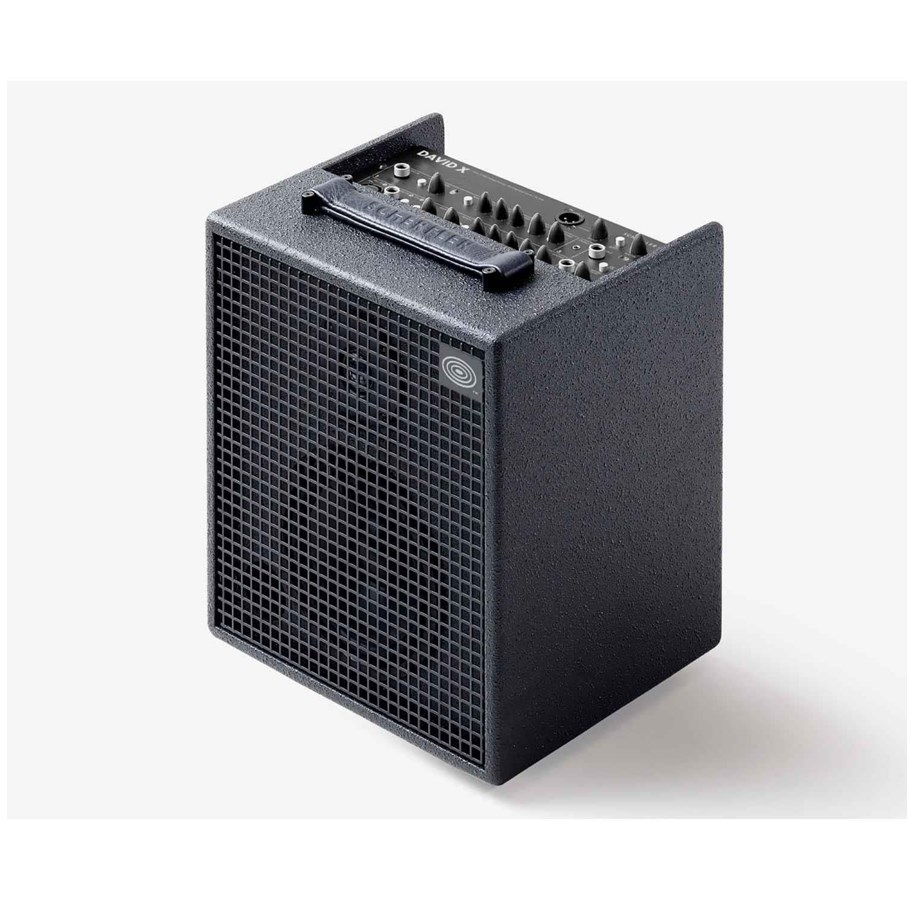

Schertler David X-A Acoustic Amplifier - Anthracite
DAVID X A represents the state of the art in Swiss amplifier design, reflecting all the needs of the user. Offering a significantly improved power amp and speaker section, together with a crossover filter network, limiter and gain, this amp provides 120 W (112 dB SPL) of bi-amplified analogue power.
DAVID X A is equipped with a 1" dome tweeter and 6" woofer. It is designed with an optimized 2-way bass reflex construction. DAVID X A is ideal for those seeking no-compromise acoustic instrument amplification. An effective system for practice and home studio use, DAVID X A's size also makes it the most portable and flexible SCHERTLER amplifier model.
The three inputs can accept two instruments, or an instrument and a vocal microphone, plus a stereo playback device.
SCHERTLER amps feature a high-end Class-A preamp with no integrated circuits and no negative feedback.
Specifikationer
- Weight: 11 kg
- Dimensions (L×D×H): 29.5 cm × 25.5 cm × 35.5 cm
- Frequency Response (@ ±3 dB): 45 Hz to 20 kHz
- Sensitivity (1 W / 1 m) @1 kHz: 92 dB
- Power: 120 W pure analog power amp
- SPL Max: 112 dB
- Speakers: 1" dome tweeter, 6" woofer
- Construction: 12 mm birch BB laminated
- System - Format: Two way, bi-amplified - Bass reflex
- Mic In connector: XLR
- Mic In sensitivity: -52 dB
- Mic In impedance: 4.7 kΩ
- Instrument In connector: 1/4" jack unbalanced
- Instrument In sensitivity: -47 dB
- Instrument In impedance: 820 kΩ
- Stereo In connector: 1/8" jack stereo
- Stereo In sensitivity: -10 dBu
- Stereo In impedance: 40 kΩ
- Insert: On master
- Line Out connector: 1/4" jack
- Line Out level: 0 dBu
- Line Out impedance: 200 Ω
- DI Out connector: XLR
- DI Out level: -∞ to +6 dBu
- DI Out impedance: 180 Ω
- Aux Out connector: n.a.
- Aux Out level: n.a.
- Aux Out impedance: n.a.
- Phones connector: n.a.
- Phones level: n.a.
- Phantom Power (nominal): 24 VDC
- Stat Power (10 VDC): Yes
- Effect: Spring-type digital reverb
- Preamp: Class-A, no negative feedback, no integrated circuits
- Footswitch: n.a.
- Stand mounting: Flange mount ⌀ 36 mm, h=102 mm
- Version: Anthracite
