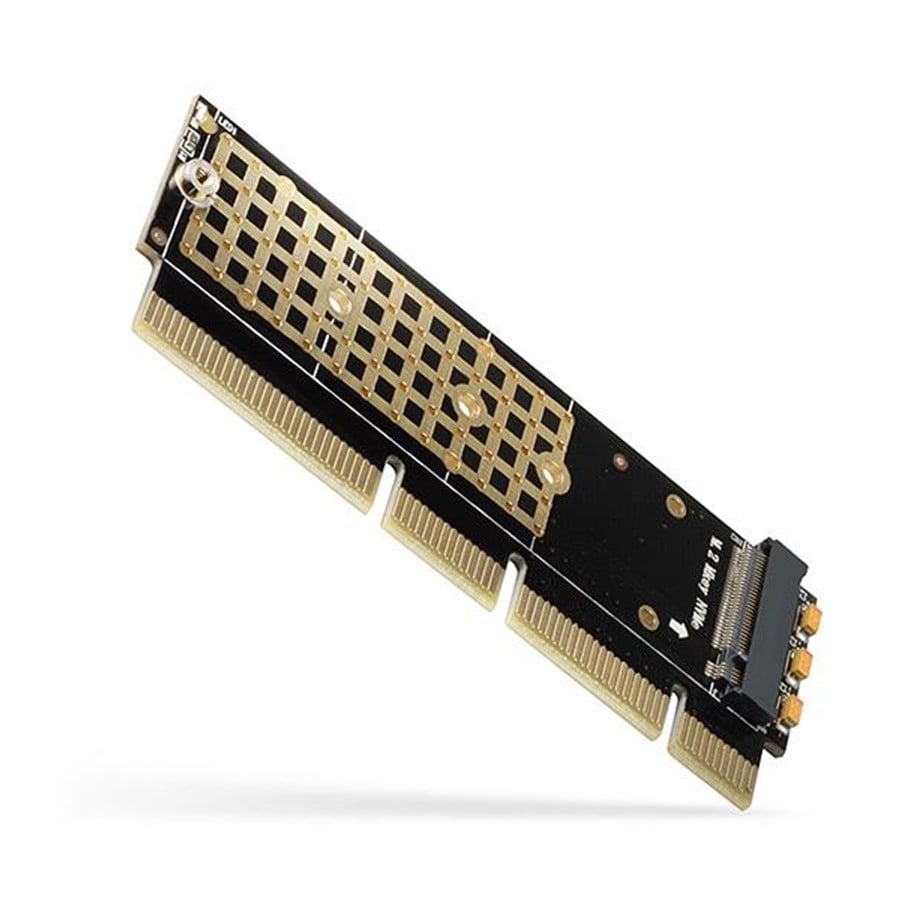

AXAGON Ultra Compact Internal PCI-Express Adapter for NVMe M.2 SSD

The AXAGON PCEM2-1U internal adapter allows connecting an M.2 SSD disk to a desktop computer using a PCI-Express bus.

The well thought-out design and ultra compact size of the adapter allow using it easily in a desktop computer not equipped with an M.2 slot. The card is also ideal for a 1U rack server and low profile cases. Its unique design allows using it not only in ×16 slots, but also in ×4 and ×8 slots.

The adapter supports the use of NVMe (PCI-Express) M.2 SSD disks, both one-sided and double-sided. There is no limit on SSD disk capacities and M.2 cards with a size of up to 22×80 mm can be used. Due to the PCI-Express 3.0 4-lane interface, rates of up to 8 GB/s can be achieved.

The thermally conductive pads and coppered vents help to remove heat generated during the operation of M.2 SSD disks. The LED indicates connection and data transfer.

Input:

• PCI-Express 3.0 interface, compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.
• Number of 4-lane lines, compatible with ×4 / ×8 / ×16 PCIe slots.
• Bandwidth of the 4-lane PCI-Express 3.0 bus up to 8 GB/s (two-way).

Output:

• NGFF 75-pin M-key slot to install NVMe (PCI-Express) M.2 SSDs.

Other features:

• Full Plug and Play support.
• Supports M.2 disk sizes 2230, 2242, 2260, 2280 mm.
• Supports M-key or B+M key NVMe (PCI-Express) M.2 SSDs without a maximum capacity limit.
• Supports both one-sided and double-sided M.2 disks.
• Improved heat dissipation due to coppered vents and thermally conductive pad.
• Supports booting from SSD card.
• Usable in 1U rack servers.
• Dimensions: 90 × 22 × 5 mm, weight: 10 g.
• No drivers need to be installed.

Power supply:

• The adapter is supplied directly from the PCI-Express bus; an external power supply is not necessary.

Supported operating systems:

• MS Windows 7 / 8 / 8.1 / 10 / 11, Windows Server 2008 R2 / 2012 / 2016 (all 32-bit and 64-bit versions supported), Linux with kernel 2.6.31 and higher.
• Note: When operating under Windows 7, contact the manufacturer of the M.2 SSD to verify OS support.

Package contains:

• PCI-Express adapter,
• 1 thermally conductive pad,
• Mounting material and a screwdriver,
• Printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• Packed in a cardboard box.
