AXAGON SuperSpeed USB-C 10 Gbps Raw Box for SATA M.2 SSD

The aluminium external AXAGON EEM2-SBC RAW box with USB 3.2 Gen 2 interface is designed for SATA M.2 SSDs. The double-sided USB-C connector, together with the supplied USB-C to USB-A cable, ensures a reliable connection to a computer.

The SATA 6G interface allows you to enjoy the speed of modern M.2 SSD drives. Transmission rates reach up to 10 Gbit/s via the fast USB 3.2 Gen 2 interface. The external M.2 box also supports modern functions such as UASP, TRIM and allows reading S.M.A.R.T. information to monitor the disk status. Standby is supported when idle.

SATA M.2 SSD drives of three lengths – 42, 60 and 80 mm – can be used in the box. M.2 cards can be single-sided or double-sided, and the box imposes no limit on SSD capacity.

The screwless box opening makes assembly and disassembly of the M.2 SSD quick and easy, expanding usage possibilities such as data migration or testing.

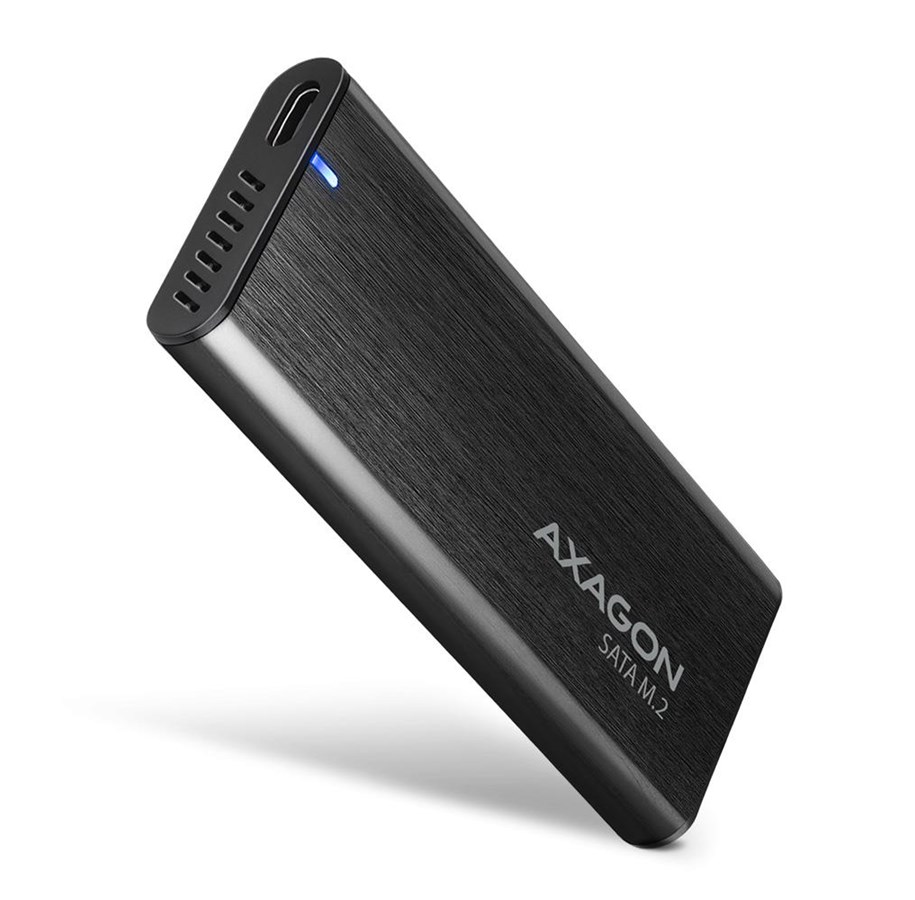

The outer metal housing in black with an elegant brushed finish prevents unwanted fingerprints. The rounded design ensures pleasant handling, and the aluminium body provides effective cooling for the inserted SSD.

Inserting an M.2 SSD creates a fast, compact external drive compatible with computers, notebooks, mobile phones and tablets.

Input

• USB 3.2 Gen 2 (USB 3.1 Gen 2) SuperSpeed USB 10 Gbit/s
• Speed up to 10 Gbit/s
• Connection via reversible USB Type-C female connector

Device support

• SATA M.2 SSDs
• Supports B+M key and B key card formats
• NGFF 75-pin B key slot for SATA M.2 drives

Other features

• Compatible with USB 3.2 Gen 2, backward compatible with USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0) and USB 2.0
• Supports transmission rates of 10 000 / 5 000 / 480 Mbit/s (SuperSpeed+ / SuperSpeed / HighSpeed)
• Supports B+M key or B key SATA (AHCI) M.2 SSDs without maximum capacity limitation
• Supports M.2 drives in sizes 2242, 2260 and 2280 mm
• Supports both single-sided and double-sided M.2 SSDs
• Compliant with Serial ATA 3.2 specification (SATA/600) with bit rates up to 6 Gbit/s (600 MB/s)
• Compliant with USB Mass Storage Class specification
• Total bandwidth determined by disk speed (theoretically up to 650 MB/s)
• Supports BOT (Bulk-Only Transport) and UASP (USB Attached SCSI) for faster data transfer in Windows 8 and later
• Supports TRIM to limit gradual SSD performance degradation
• Supports S.M.A.R.T. monitoring
• Supports boot from SSD in the external box
• Hot Plug and full Plug-and-Play support
• Standby after 5 minutes of inactivity
• Powered via USB 3.0 bus up to 900 mA from one port
• Blue LED indicates USB connection (steady) and data transfer (blinking)
• Heavy-duty aluminium body with cooling holes
• Connection via USB 3.2 Gen 2 Type-C female connector
• USB Type-C to USB Type-A cable 20 cm included

Other data

• External box dimensions: 94 × 41 × 10 mm
• Weight: 36 g (without cable or SSD)

Supported operating systems

• Windows 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2008 / 2012 / 2016 / 2019 and later (all 32- and 64-bit versions)
• macOS X 10.x and later
• Linux Kernel 2.6.x and later
• Android (OS and device support required)

Note: Drivers are included with supported OS and install automatically; no other drivers are required.

Package contains

• USB-C 3.2 Gen 2 external box for SATA M.2 SSD
• USB Type-C to Type-A cable, 20 cm
• Mounting material
• Multilanguage quick guide (CZ, DE, DK, EN, ES, FI, FR, GR, HR, HU, IT, NL, PL, PT, RO, RU, SK, SWE, TR, BG, CN, ARA)
• Packed in cardboard box with hanging hole
