Varunummer: 3213148

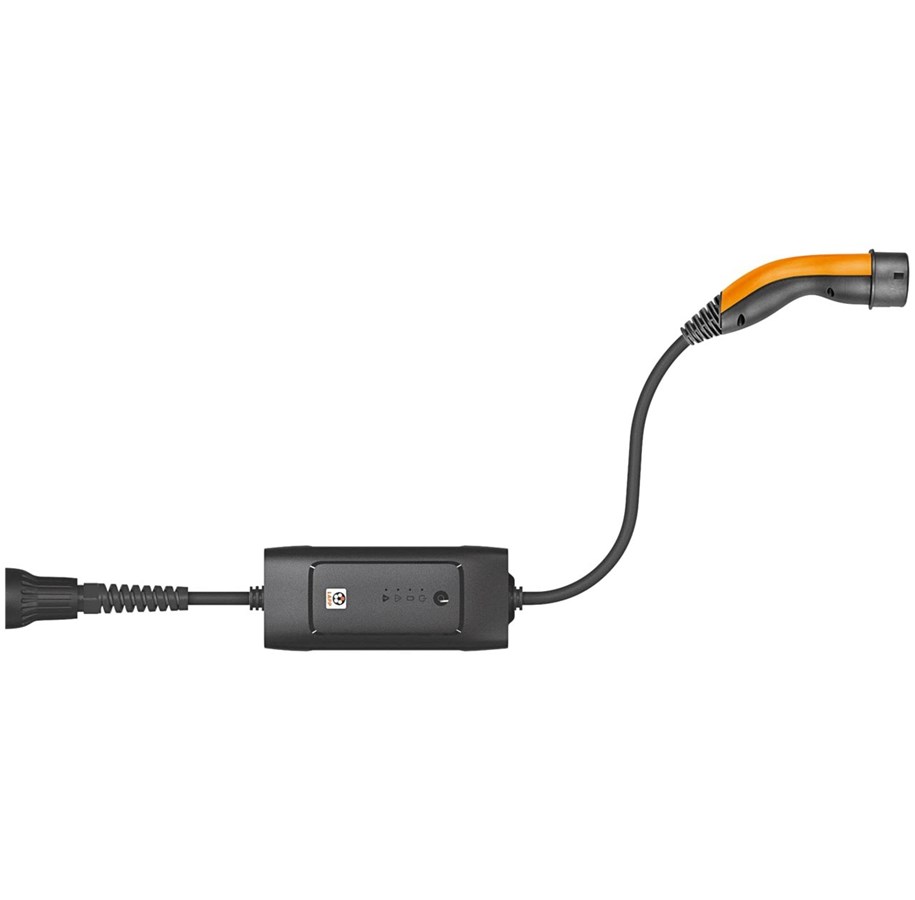

LAPP Mobile Charging Station Universal Type 2,supplied without adapters, up to 22 kW, 6 m

(5555922000) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection.

The LAPP Charging Station Universal charges your electric vehicle via a range of sockets - for easy charging at home or on the road. Simply attach the required LAPP charging adapter to the connection point on the cable. Suitable for handy use with household sockets or one-phase and three-phase CEE sockets, e.g. in hotels, workshops and in the agricultural sector.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
Matching adapters: 64703, 64704, 64705, 64706, 64707, 64708
Läs mer
5 054,00 kr 4 043,20 kr exkl. moms
Gratis frakt
Beställningsvara, 7-8 vardagar leveranstid

(5555922000) 32 A, 3 phases, for charging hybrid and electric cars with Type 2 connection.
The LAPP Charging Station Universal charges your electric vehicle via a range of sockets - for easy charging at home or on the road. Simply attach the required LAPP charging adapter to the connection point on the cable. Suitable for handy use with household sockets or one-phase and three-phase CEE sockets, e.g. in hotels, workshops and in the agricultural sector.
The LAPP charging station is suitable for plug-in hybrid (PHEV) and battery electric vehicles (BEV).
Matching adapters: 64703, 64704, 64705, 64706, 64707, 64708
  • The LAPP Mode 2 charger with Type 2 coupling and a socket for separately available LAPP mains adapters provides highly flexible mobile charging - in the garage at home, on the campsite or as an emergency charging cable on the road
  • The mains-side port is connected to the mains with individual adapter cables, e.g. with a household plug (type E/F, safety plug CEE 7/4) or a CEE industrial plug
  • The electronics recognises the adapter and adjusts up to the possible maximum charging power between 1.2 and 22 kW
  • Robust, vehicle-resistant cables and plugs with silver-plated contacts and the drop-proof control box (waterproof according to IP67) provide extra durability
  • Cover caps on the sockets protect against the ingress of dust, dirt and water in between charges
  • Oil-resistant EV charging cable at a nominal voltage of 110-400 V (AC) and an operating temperature of -25 °C to 45 °C
  • Particularly safe due to overcurrent and overvoltage protection as well as temperature monitoring in the mains plug and in the in-cable control box (ICCB)

Can only be used in conjunction with the LAPP charging adapters!

64708 / 5555923000

64707 / 5555923005

64706 / 5555923001

64705 / 5555923003

64704 / 5555923002

64703 / 5555923004

The mobile LAPP Mode 2 charging stations automatically detect which plug charging adapter is used. The electronics regulate the possible maximum charging power.

The interchangeable LAPP plug-in charging adapters are resistance-coded and thus the possible maximum charging power is regulated by the electronics.

Producent
Varunummer
3213148
Modell
4056158850918
EAN
4056158850918
