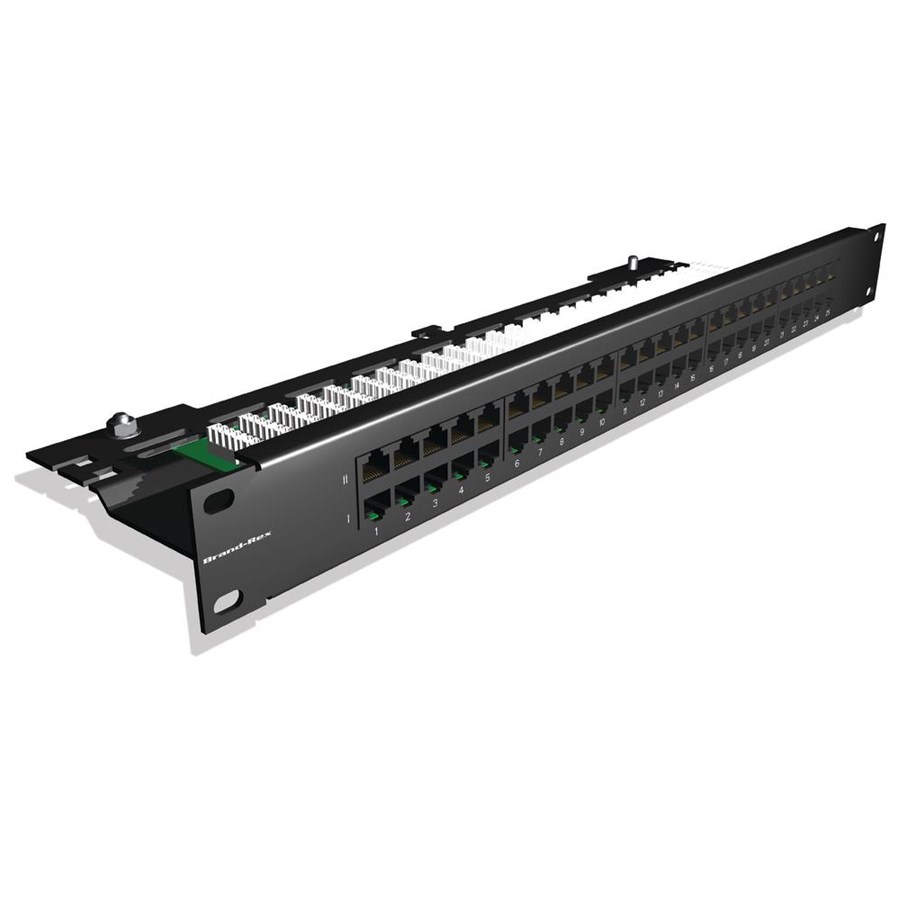

Leviton Voice patch panel 50xrj45.1u black
19" rack mounted Unscreened RJ45 ISDN/Telephone 50 port patch panels to ensure maximum utilisation of cabinet space. In addition to this, all panels are supplied with a central & side cable anchor features &dual earthing points. All outlets are numerically identified. Each panel is supplied with wiring label, cable ties, and panel mounting accessories, pair manager, earth lead & short form installation instruction.FEATURES•50 port versions available•4 pin versions available•Rugged construction•19" rack compatible•Durable powder coat finished in blackMATERIALS•Chassis –Mild SteelINSTALLATION•Outlet: 8pin RJ45 Unkeyed•IDC: LSA Style Insulation Displacement Connectors (IDC)suitable for both solid & stranded wire 26AWG (0.4mmØ)– 22 AWG (0.64mmØ)STANDARDS•Applicable Standards:TIA/EIA 568C.2EN 50173-1ISO/IEC 11801CONFORMANCE•4pin - TIA/EIA 568C.2 CAT3 (2 pair)ACCESSORY KIT•1x Installation instruction•1x 2m 1.5mm2 flexible earth Lead,•4 x M6 Caged Nuts•4 x M6 x 20mm PH slotted screws•4 X M6 Black Cup washers
1 583,00 kr
1 266,40 kr exkl. moms
Gratis frakt
Leverantör, 3-4 vardagar leveranstid
Telecom patch panel 50 ports RJ45 - 2 pairs (36 & 45) fast wired 1U blackProduct description: This is a U-shielded, rack-mounted telecom patch panel with 50 ports for RJ45 ISDN/telephone connections. It is designed to maximize the use of cabinet space and comes with double grounding points. All ports are labeled with consecutive numbers. Each panel includes cable ties, mounting equipment, pair administrators, grounding wires and installation instructions.FEATURES• Available in versions with up to 50 ports• RJ-45 connector format for the four-pin version• Robust construction • Compatible with standard 19" racks • Durable black powder coating MATERIALS • Chassis made of steel INSTALLATION Outlet: Unkeyed eight-pin RJ-45 only four-wire IDC (Pairs 36 & 45)IDC: LSA style insulation displacement connectors suitable for both solid and stranded wire from cross-sections of 26AWG (0.4 mmØ) - 22 AWG (0.64 mmØ)STANDARDS Applicable standards:TIA/EIA568C.2EN50173-1ISO/IEC11801COMPLIES WITH:4pin-TIA/EIA568C.2 CAT3(2 pairs -36&45)INCLUDED ACCESSORIES • Installation instructions x1 • Flexible ground wire x1(2m long, section area is 1.5mm²) • M6 burn nuts x4 • M6x20mm PH screws x4 • Black cup washers X4Technical specifications:Color: Black
Kabeltyper som stöds
Cat3
Certifiering
TIA/EIA 568C.2, EN 50173-1, ISO/IEC 11801
Nätverk
Kabeltyper som stöds
Cat3
Design
Certifikat
Certifiering
TIA/EIA 568C.2, EN 50173-1, ISO/IEC 11801
Vikt & dimension
