Varunummer: 2951268
Siemens Circuit-breaker spring-l. conn. 5a 3rv2011-1fa20
Siemens 3RV2011-1FA20 övrigt
828,00 kr
662,40 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 2-3 vardagar leveranstid

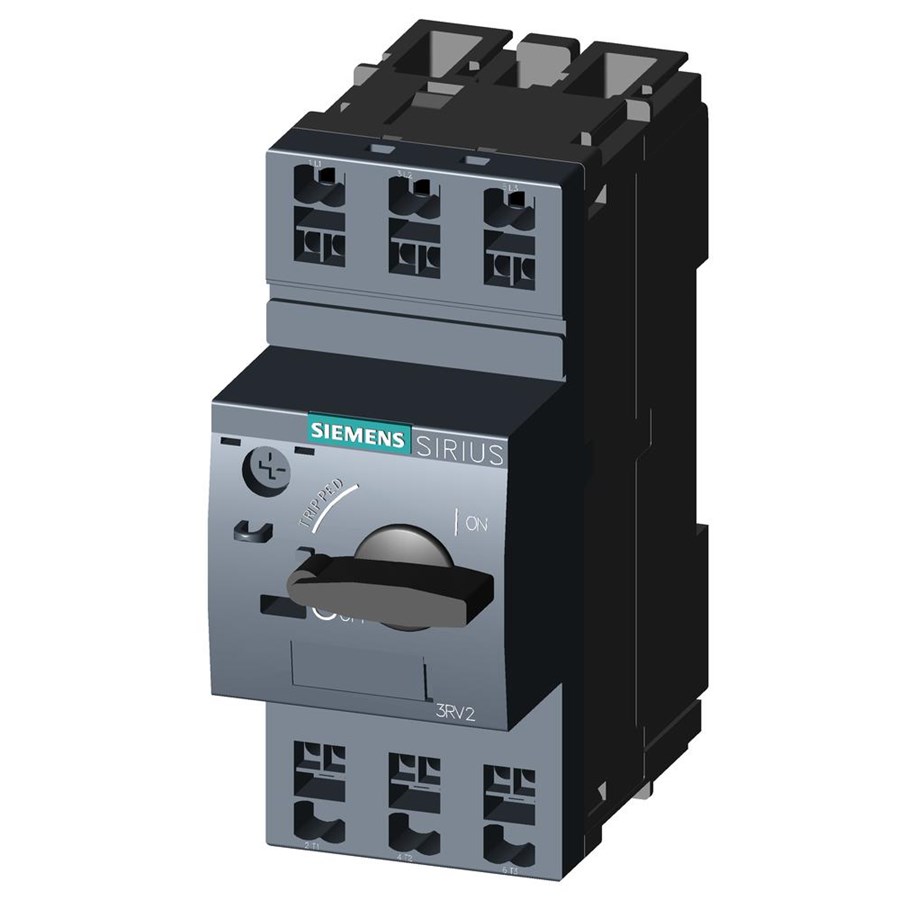

Siemens SIRIUS Innovation Motor Protection Circuit Breaker, 3.5 to 5A Current Rating - 3RV2 Series - 3RV2011-1FA20
For reliable motor protection, opt for this 5-amp circuit breaker from Siemens. It's fitted with a state-of-the-art current monitoring relay located directly in the main circuit, as well as phase disturbance recognition for faster response times. As part of the Sirius Innovation modular system, the unit is designed to work with other items in the range. You can combine it with SIRIUS soft starters for a torque-restricting and current-limiting startup process that's both safe and efficient. It screws and snaps onto a standard DIN rail, and with a width of just 45mm, it can fit into units where space is tight.
- Current rating of 3.5 to 5A for standard use
- Spring-loaded terminals provide an easy connection to the main current circuit
- Thermomagnetic design of both overcurrent release and short-circuit release for dependable reliability
What does the unit's trip class of 10 indicate?
Class 10 tripping means that at six times the maximum thermal current rating, the breaker will trip in 10 seconds or less. This quick response time improves safety and limits damage to motors and connected components.
For reliable motor protection, opt for this 5-amp circuit breaker from Siemens. It's fitted with a state-of-the-art current monitoring relay located directly in the main circuit, as well as phase disturbance recognition for faster response times. As part of the Sirius Innovation modular system, the unit is designed to work with other items in the range. You can combine it with SIRIUS soft starters for a torque-restricting and current-limiting startup process that's both safe and efficient. It screws and snaps onto a standard DIN rail, and with a width of just 45mm, it can fit into units where space is tight.
- Current rating of 3.5 to 5A for standard use
- Spring-loaded terminals provide an easy connection to the main current circuit
- Thermomagnetic design of both overcurrent release and short-circuit release for dependable reliability
What does the unit's trip class of 10 indicate?
Class 10 tripping means that at six times the maximum thermal current rating, the breaker will trip in 10 seconds or less. This quick response time improves safety and limits damage to motors and connected components.
Producent
Varunummer
2951268
Modell
3RV2011-1FA20
EAN
4011209724303
Till producentens hemsida
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
