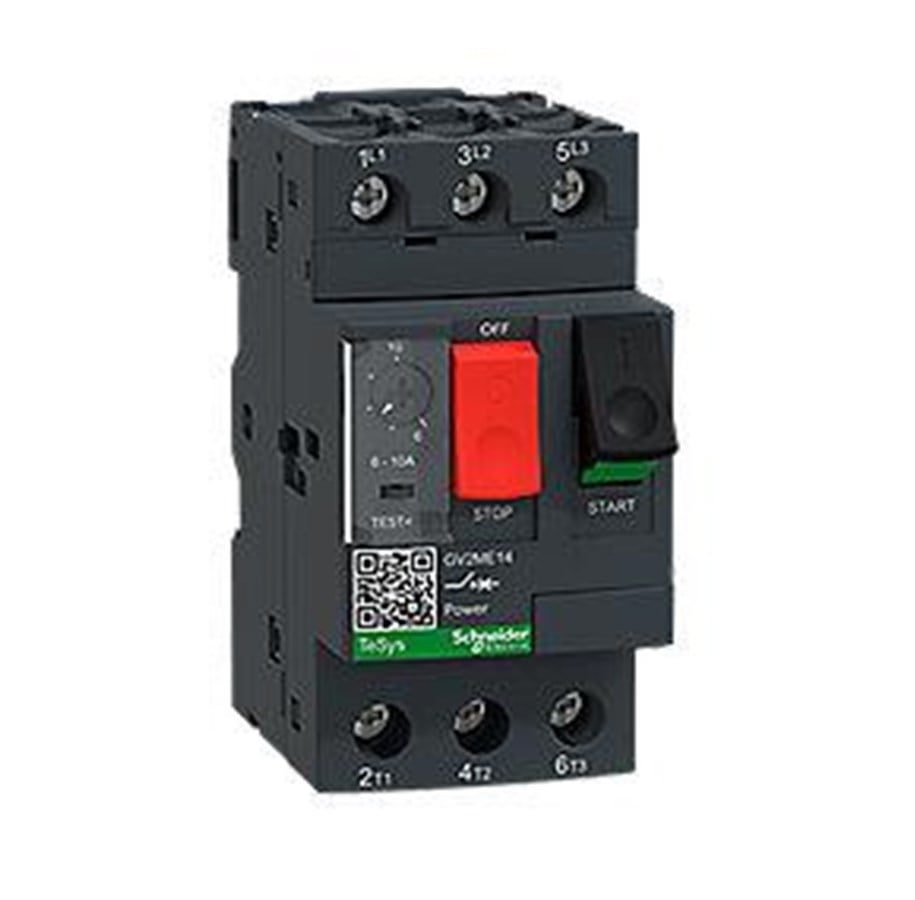

Schneider Electric Tesys gv motor circuit breaker gv2me14 thermal-magnetic 6

GV2ME14 is a TeSys GV motor circuit breaker from Schneider Electric designed for motor applications 3-4kW@400V. It fulfills a thermal-magnetic protection with a thermal setting range 6-10A, magnetic tripping at 12xIn and high breaking capacity Icu 100kA@400V. Start-stop control by push-button guaranteed for 100 000 cycles AC-3 415V. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Complete motor protection in a single device : short-circuit, overload, disconnection. Associated with a TeSys contactor, it ensures a complete type 1 or type 2 Motor Starter solution . Light and compact, 45mm wide, for DIN-rail and panel mounting. Manual control with push-buttons for Start / Stop, padlockable. Possible mounting of auxiliary contacts front or side mounted (GVAE, GVAN, GVAD) for status and tripping signalling. For large industrial or building LV distribution networks thanks to a high 100kA breaking capacity. Power connections with screw clamp terminals, also available with springs and lugs terminals. Can be associated with undervoltage or shunt tripping units (GVAU, GVAS) and power distribution busbars (GV2G)

Läs mer
772,00 kr 617,60 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 3-4 vardagar leveranstid

-6ATeSys GV motor protection GV2ME14, thermal magnetic, 6-10A 3-4kW@400V Icu100kA, push button. Product description: TeSys GV2ME14 is a hand-operated motor protection for rated current between 6 and 10A. The device functions as a maximum circuit breaker and provides complete thermomagnetic protection in accordance with IEC 947-2 and IEC 947-4-1 standards. GV2ME14 is compact (only 45 mm wide) and quick to install with clips directly on DIN rail. The range is categorized by function, breaking capacity, and accessories making it easy to choose the right GV2ME protection for every need. GV2ME motor protections are ideal for industrial applications, infrastructure, and buildings.Technical specifications: Short-circuit current Icu (kA) at 400V: >100kA Setting range: 6.3-10AEfficiency at/400-415V (kW):4 -6 A

Producent
Varunummer
2758711
Modell
GV2ME14
EAN
3389110343137
Till producentens hemsida
Poltal
3
Internationellt skydd (IP) kod
IP20
Produktens färg
Svart, Vit
Certifiering
EN 60204 IEC 60947-1 IEC 60947-2 IEC 60947-4-1 NF C 63-120 NF C 63-650 NF C 79-130 UL 508 VDE 0113 VDE 0660 CSA C22.2
Temperatur vid drift
-20 - 60 ° C
Temperaturintervall (förvaring)
-40 - 80 ° C
Altitud vid drift
0 - 2000 m
Bredd
45 mm
Djup
78,2 mm
Höjd
89 mm
Vikt
260 g

Egenskaper

Poltal
3
Internationellt skydd (IP) kod
IP20
Produktens färg
Svart, Vit
Certifiering
EN 60204 IEC 60947-1 IEC 60947-2 IEC 60947-4-1 NF C 63-120 NF C 63-650 NF C 79-130 UL 508 VDE 0113 VDE 0660 CSA C22.2

Miljökrav

Temperatur vid drift
-20 - 60 ° C
Temperaturintervall (förvaring)
-40 - 80 ° C
Altitud vid drift
0 - 2000 m

Vikt & dimension

Bredd
45 mm
Djup
78,2 mm
Höjd
89 mm
Vikt
260 g
