Varunummer: 2952331

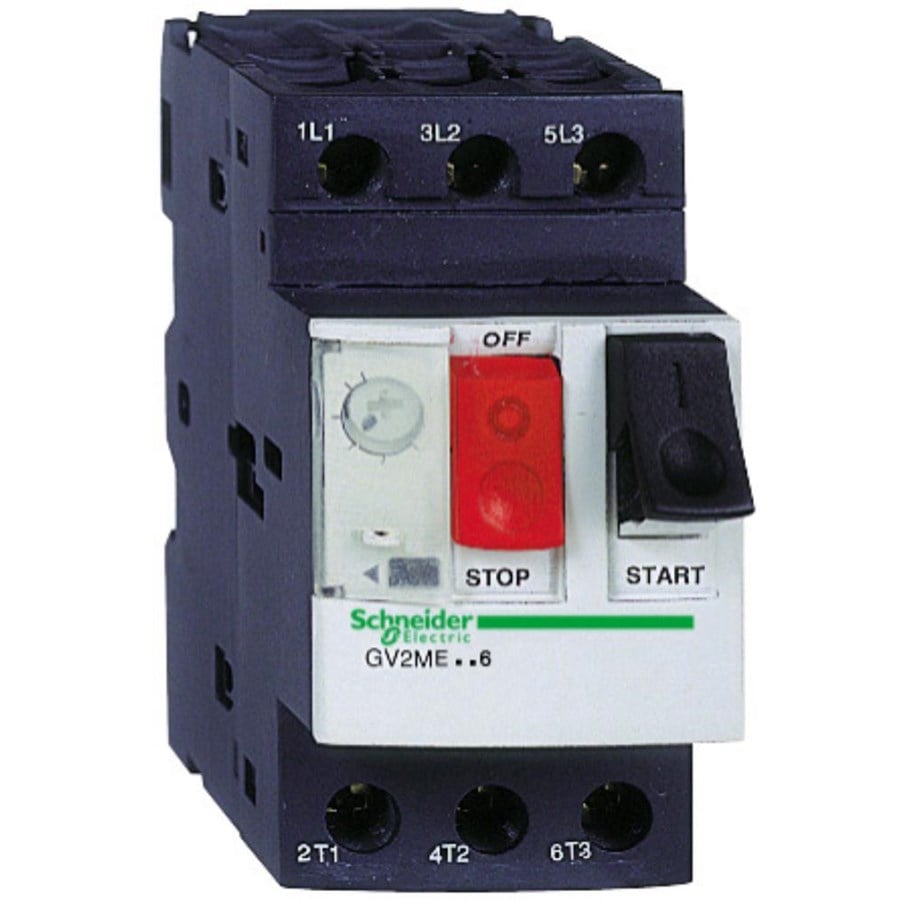

Schneider Electric Tesys gv motor circuit breaker gv2me10 thermal-magnetic 4-6.3a 2.2kw@400v icu100ka pushbutton
Schneider Electric TeSys GV2 strömbrytare 3
735,00 kr
588,00 kr exkl. moms
Billigaste frakt: 49,00 kr
Leverantör, 2-3 vardagar leveranstid
Manual and local control, when the motor circuit-breaker is used on its own, and automatic and remote control when combined with a contactor
Motor protection provided by thermal-magnetic devices built into the circuit-breaker
No live parts are accessible to direct finger contact
The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost
The addition of a shunt trip enables remote control of tripping
The control for the open or enclosed motor circuit-breaker can be locked in the “N/C" position using 3 padlocks
Connectors: spring terminal, screw clamp
Motor protection provided by thermal-magnetic devices built into the circuit-breaker
No live parts are accessible to direct finger contact
The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost
The addition of a shunt trip enables remote control of tripping
The control for the open or enclosed motor circuit-breaker can be locked in the “N/C" position using 3 padlocks
Connectors: spring terminal, screw clamp
Producent
Varunummer
2952331
Modell
GV2ME10
EAN
3389110343113
Till producentens hemsida
Poltal
3
Internationellt skydd (IP) kod
IP20
Produktens färg
Svart, Vit
Certifiering
EN 60204
IEC 60947-1
IEC 60947-2
IEC 60947-4-1
NF C 63-120
NF C 63-650
NF C 79-130
UL 508
VDE 0113
VDE 0660
CSA C22.2
Temperatur vid drift
-20 - 60 ° C
Temperaturintervall (förvaring)
-40 - 80 ° C
Altitud vid drift
0 - 2000 m
Bredd
45 mm
Djup
78,2 mm
Höjd
89 mm
Vikt
260 g
Certifikat för överensstämmelse
RoHS
Egenskaper
Poltal
3
Internationellt skydd (IP) kod
IP20
Produktens färg
Svart, Vit
Certifiering
EN 60204
IEC 60947-1
IEC 60947-2
IEC 60947-4-1
NF C 63-120
NF C 63-650
NF C 79-130
UL 508
VDE 0113
VDE 0660
CSA C22.2
Miljökrav
Temperatur vid drift
-20 - 60 ° C
Temperaturintervall (förvaring)
-40 - 80 ° C
Altitud vid drift
0 - 2000 m
Vikt & dimension
Bredd
45 mm
Djup
78,2 mm
Höjd
89 mm
Vikt
260 g
Tekniska detaljer
Certifikat för överensstämmelse
RoHS
