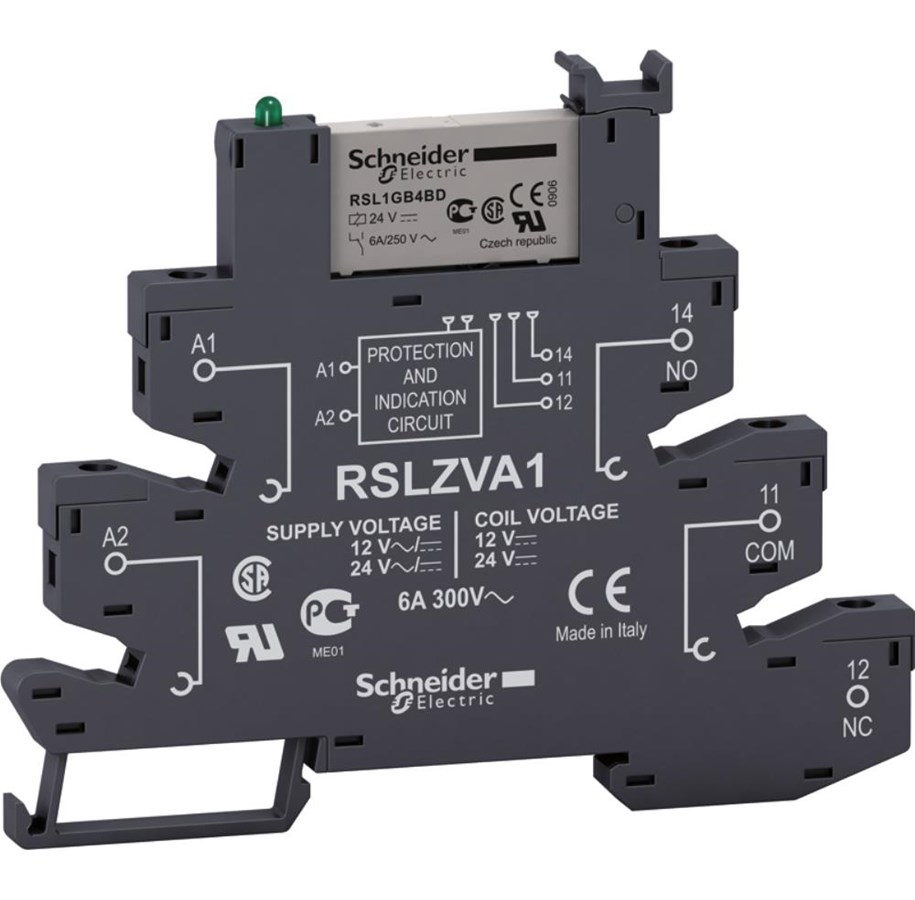

Schneider Electric Socket with screw terminals 12-24v ac/dc
Zelio RSL Slim relays are the most compact socket relays in the Zelio range.With a width of only 6,2 mm. it saves valuable space on the DIN-rail of a panel.The RSL relays are available as either as a complete unit or as a separate relay and socket.The build-in protection circuit protects against reversed polarity and power surges from other equipment in the panel.A green LED on the front indicates if the there is supply to the relay.The RSLZVA1 socket fits the RSL1AB4JD, RSL1AB4BD, RSL1GB4JD and RSL1GB4BD relays.Supply voltage can be either 12V AC/DC or 24V AC/DCThe socket has screw terminals for wires between 0,2..2,5 mm in core diameter.It is possible to connect up to 20 pcs. RSLZVA1 sockets with the RSLZ2 jumper.Marking of the socket can be done with the RSLZ5 legend.
185,00 kr
148,00 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 2-3 vardagar leveranstid
Base with screw terminals for RSL1 relays 12-24V AC/DC supply. Product description: Zelio RSL Slim relays are the most compact socket relays in the Zelio series. With a width of only 6.2 mm, these relays save valuable space on the DIN rail in a panel. The RSL series is available either as a complete unit or as a loose relay and socket. The built-in protection circuit in the socket protects against incorrect pole mounting and transients that may arise from other equipment in the panel. In addition, the socket has an integrated LED for easy indication of power to the relay. The RSLZVA1 socket fits RSL1AB4JD, RSL1AB4BD, RSL1GB4JD and RSL1GB4BD relays.The supply voltage can be either 12V AC/DC or 24V AC/DC.The base is equipped with screw terminals that can handle wires from 0.2..2.5 mm² cross-section.It is possible to loop up to 20 pieces of RSLZVA1 sockets with the corresponding loop barR SLZ2.Markings on sockets can easily be made using correspondingR SLZ5 labels.Technical specifications:Width (mm):6 .2Height (mm):101Terminals:ScrewCurrent (A):6
