Schneider Electric Multifunc timer 1c o 12 240vac dc

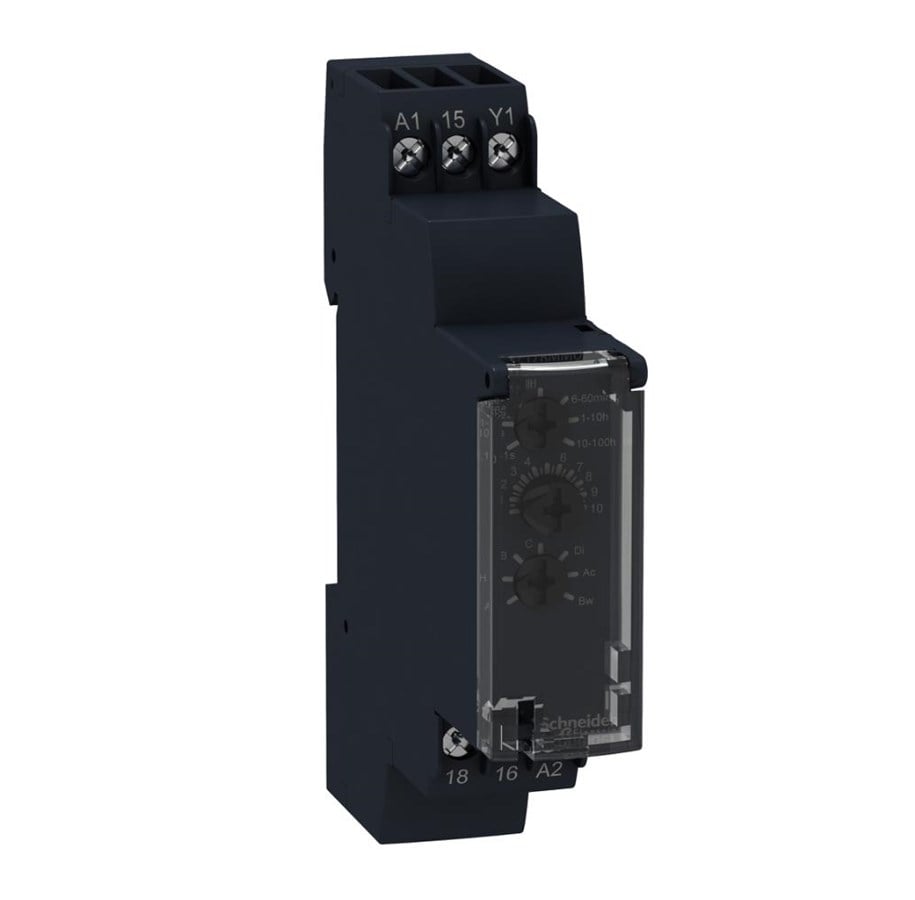

Timer 17.5mm multifunction 0.1s-100t 1 C/O 5A 24VDC/24-240VAC Product description: The Zelio RE17 series is a compact range of timers designed for easy installation on a DIN rail in a control panel. With its width of only 17.5mm, it takes up very little valuable space in the panel and can be mounted behind a cover on the front if desired. The transparent front cover protects the timer from dust and dirt, and can be locked to prevent accidental adjustment of the timer settings.RE17RMMU is a multifunction timer with seven different timing functions available. It can be powered by either 24VDC or 24-240V AC, with maximum contact load of up to 5A.The seven different timing functions are described below:A: Delayed start when power is applied to the timerH: Adjustable pulse (one-shot) when power is appliedB: Adjustable pulse (one-shot) activated by control input Y1C: Delayed drop-out activated when voltage is removed from control input Y1Di: Symmetrical blink (pulse-pause) starting with one pulseAc: Delayed start and delayed drop-out activated by control input Y1Bw : Adjustable pulse triggered by both high and low edges on control input Y1The time range can be freely adjusted within one of these seven time ranges using two adjustment screws located on the front panel.RE17RMMU has following time ranges available :0.1-1 second;                                                                                                                          1-10 seconds; 6-60 seconds; 1-10 minutes; 6-60 minutes;1-10 hours;10-100 hours.The LED on the front panel indicates the status of the relay output. Technical specifications: Current (A): 8AConnection: Screw terminals.
