Komponenter för switchboxar och skåp - Schneider Electric Logic style socket separated termination - RXZE2S111M
Varunummer: 2952205

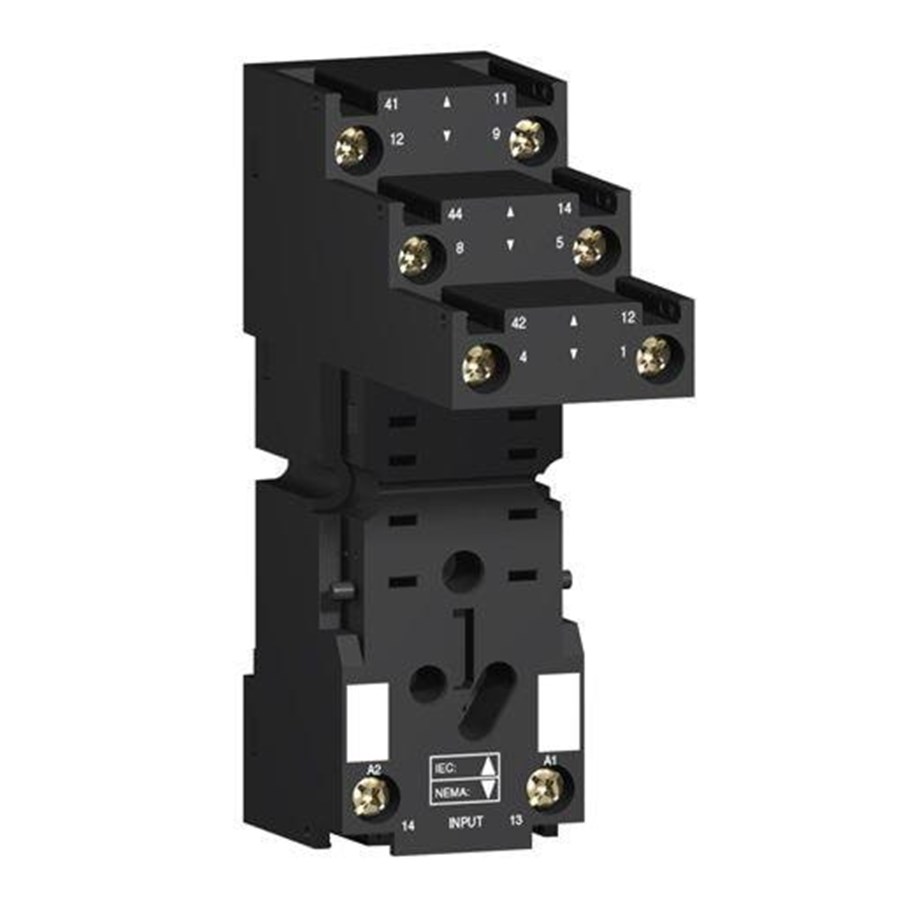

Schneider Electric Logic style socket separated termination

Zelio RXM are a series of industrial plug-in relays, designed for both simple and complex automation systems.The relays are available with 2 C/O (12A), 3 C/O (10A) or 4 C/O (6A) contacts and it is possible to get them with lockable testbutton and status LED.A special 4 C/O version with gold plated contacts for low energy switching is also available.A protection module (diode, varistor or RC-circuit) can be inserted into the socket if needed.The sockets are availble with either mixed terminals or with seperate terminals depending on the prefered solution.RXZE2S111M is a relay socket for mounting on a DIN-rail with separate terminals and compatible with RXM plug-in relays with 3 C/O contacts.In the bottom of the socket are the terminals for the coil supply and in the top are all the terminals for the contacts.The width of the socket are 27 mm and it is possible to insert protection modules next to the supply terminals.The socket comes without a maintaining clamp but the RXZR335

127,00 kr 101,60 kr exkl. moms
Billigaste frakt: 59,00 kr
Leverantör, 2-3 vardagar leveranstid

Relay socket for RXM plug-in relays with 3 contacts and separate terminals for power and supply. Product description: Zelio RXM is a series of industrial plug-in relays, suitable for both simple and complex automation systems. The relays are available with either 2 C/O (12A), 3 C/O (10A) or 4 C/O (6A) contacts and can be selected with a test button and built-in LED. A version with 4 C/O gold-plated contacts for low current and voltage switching is also available. A protection module (diode, varistor or RC-led) can be inserted directly into the relay socket if required. The sockets are available with either mixed terminals or separate terminals depending on what suits best.RXZE2S111M is a socket for mounting on a DIN rail with separate terminals that fit RXM plug-in relays with 3 C/O contacts.The bottom of the socket has the coil supply terminals located, while the top has the contact set terminals.The socket has a width of 27 mm, and it is possible to insert protection modules next to the power supply.A holding bracket for the socket is not included but can be purchased in plastic (RXZR335) or metal (RXZ400).RXZE2S111M has a maximum load capacity of 10A.The socket is marked both NEMA-IEC.For mounting several RXZE2S111M sockets side by side, it's possible to loop coil supplies using two-pole RXZS2 loops.NOTE: It's essential to use an RXZR335 holding bracket when used in marine applications certified by Lloyd's.

Producent
Varunummer
2952205
Modell
RXZE2S111M
EAN
3389119404273
