Varunummer: 2762774

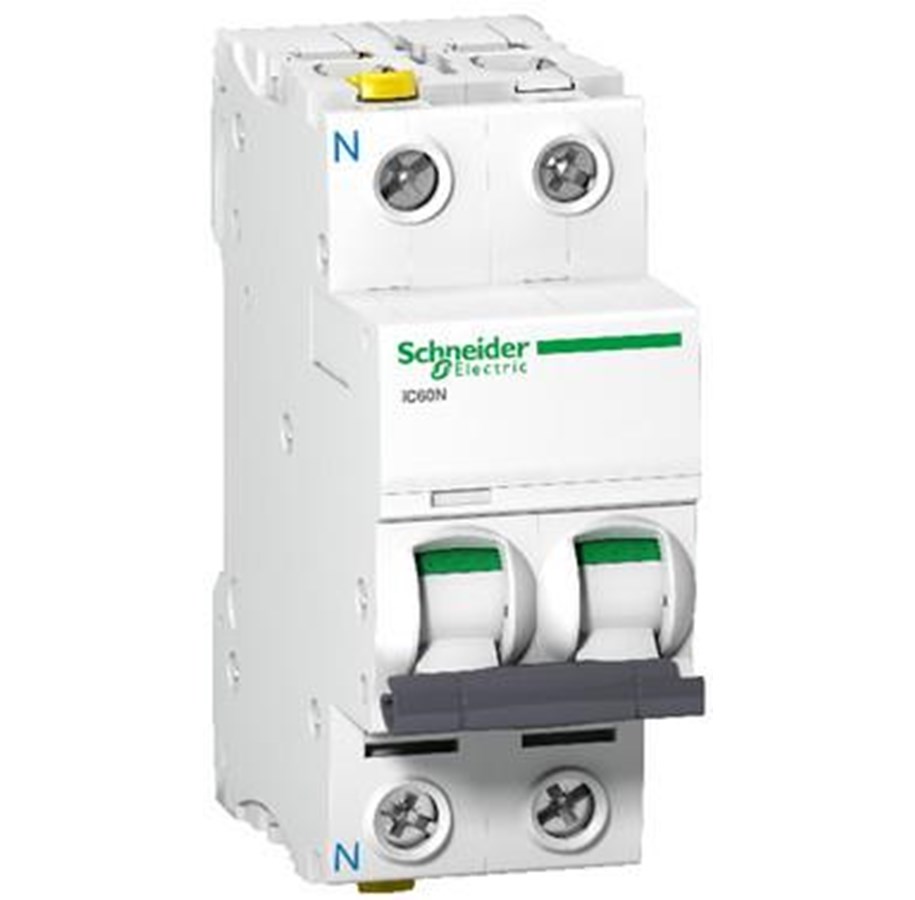

Schneider Electric Acti9 ic60n 1p-n 2a dobbelt terminal c-karakteristik 6/10ka

This Acti9 iC60N is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit-breaker with 1 protected pole, 2A rated current and C tripping curve. It can be mounted on DIN rail for modular installation. As circuit-breaker, its breaking capacity, according to IEC/EN 60898-1, is 6000A at 230VAC. As circuit-breaker, its breaking capacity, according to IEC/EN 60947-2, is 50kA at 230VAC. This miniature circuit breaker protects circuits against short circuit and overload currents. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II. its fast closing mechanism improves its service life. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance.

Läs mer
246,00 kr 196,80 kr exkl. moms
Billigaste frakt: 49,00 kr
Leverantör, 3-4 vardagar leveranstid

Acti9 iC60N Automatic Circuit Breaker, 1P+N 2A C, with double terminal, 36 mm. Product description: Acti9 automatic circuit breaker, 1P+N, 2A, 230V 6/10kA, C-characteristic, double terminal with VisiTripTM and VisiSafeTM. Width of 36 mm. Acti9 iC60 automatic circuit breakers protect the circuit against short-circuit currents and overload currents. Patented VisiTripTM technology indicates faults on the unit's front for quick troubleshooting. This circuit breaker has one pole + N and is marked for C-characteristic at a rating of 2A/230V with a short-circuit breaking capacity of6/10kA.The automatic circuit breaker is connected using double terminal clamps that allow separate connection of cables and busbars for easier installation,maintenance,and replacement.IP20 terminals protect against contact with live wires when terminal screws are tightened.Meets both IEC/EN60898-1and IEC/EN60947-2 standards.

Producent
Varunummer
2762774
Modell
A9F04602
EAN
3606480440908
Till producentens hemsida
Ingående ström
2 A
Poltal
1
Internationellt skydd (IP) kod
IP20
Temperatur vid drift
-35 - 70 ° C
Temperaturintervall (förvaring)
-40 - 85 ° C
Bredd
36 mm
Djup
78,5 mm
Höjd
91 mm
Vikt
500 g
Certifikat för överensstämmelse
RoHS

Strömtillförsel

Ingående ström
2 A

Egenskaper

Poltal
1
Internationellt skydd (IP) kod
IP20

Miljökrav

Temperatur vid drift
-35 - 70 ° C
Temperaturintervall (förvaring)
-40 - 85 ° C

Vikt & dimension

Bredd
36 mm
Djup
78,5 mm
Höjd
91 mm
Vikt
500 g

Tekniska detaljer

Certifikat för överensstämmelse
RoHS
