Noratel Transformer fr78b-400230 90va

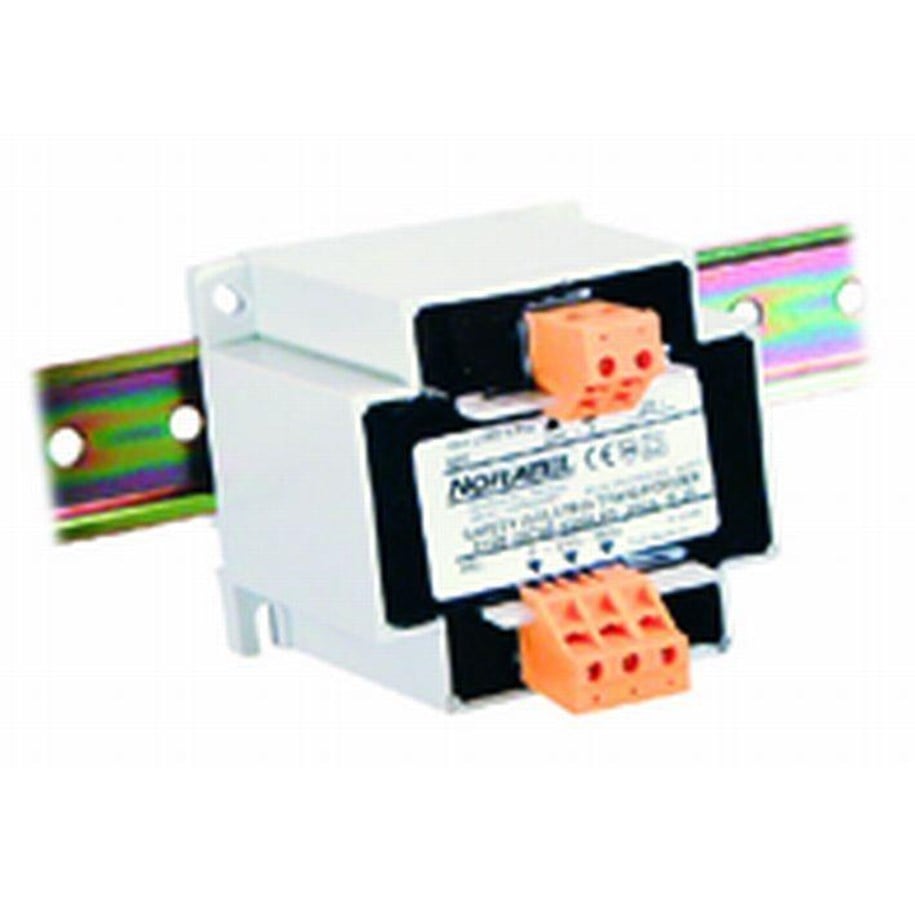

Transformer FR78B-400230 90VA Product description: Single-phase isolation transformers designed and manufactured according to EN61558-2-4 and applicable requirements from Det Norske Veritas, which among other things requires an ambient temperature of max. 45°C. CE marked. The FR series is designed to meet increasingly stringent requirements for reliability and service life in the Off-Shore industry, among others. The transformer is developed using modern production methods and completely encapsulated in self-extinguishing polyurethane that protects the construction against dust and moisture, and has been vibration tested by D.N.V for ship installations. The FR series is touch-safe but intended for installation in cabinets or panel systems. FR60B, FR78B, and FR84B can be mounted directly on DIN rails. The transformers are double insulated.Application area: Often used in connection with contactors. Usually no covering is required for cabinet mounting.Special designs available upon request.Technical specifications:Max load (VA): 90Primary voltage (V): 400-415-440Secondary voltage (V): 230Dimensions in (mm) A:85
