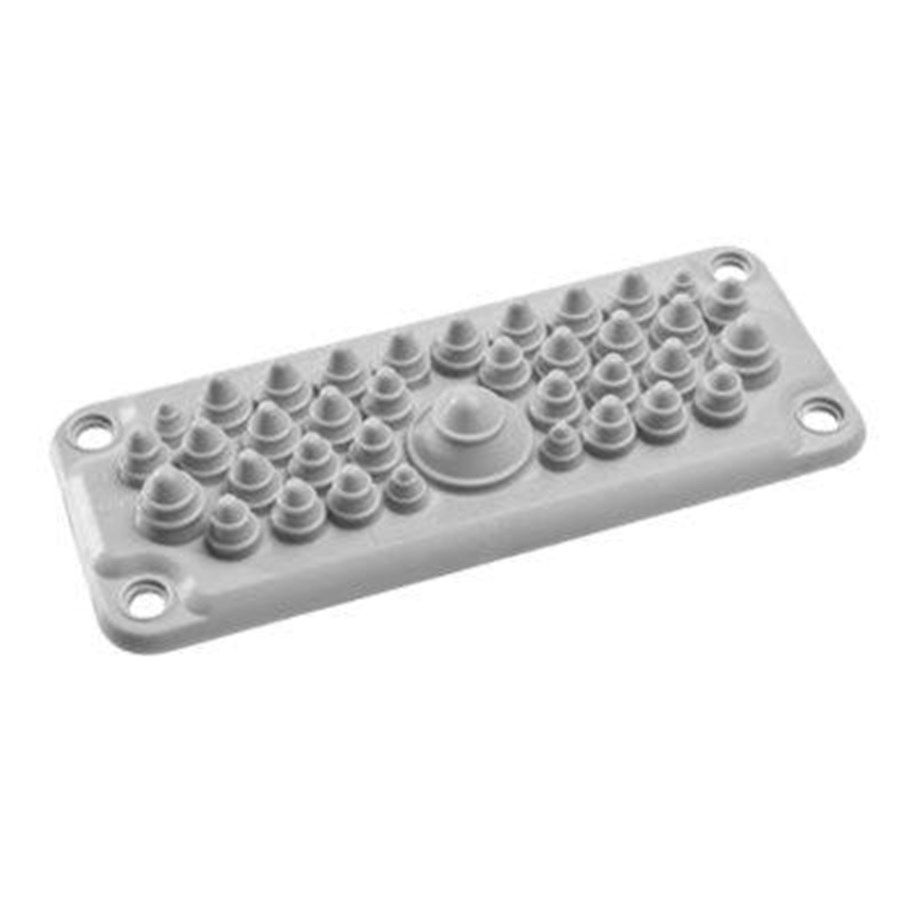

Schneider Electric Schneider Spacial SF NSYAECPFLT35 - cable entry membrane - type FL21 with 37 entrances

Cable entry membrane type FL21 for Spatial S3D, Spatial CRN and Spatial SF enclosures. The 37 entrances allow multi-purpose use with cables ranging from 6 mm to 32 mm in diameter. The 37 entry diameter are the following: 4 entry ranging from 6 mm to 10 mm, 14 entry ranging from 8 mm to 12 mm, 16 entry ranging from 10 mm to 14 mm, 2 entry ranging from 12 mm to 18 mm and 1 entry ranging 17 mm to 32 mm. IP66 protection against water and dust is maintained according to IEC 60529. The product can be used in a temperature range from -40 ºC to +100 ºC and have a flame resistance of 650 ºC according to UL 94 V0. The cut-out dimensions are 214 mm x 90 mm, and the external dimensions are 214 mm x 88 mm. The cable entry can be installed on cable gland plate adapter or directly on enclosure. Fixing elements are delivered with the product. This product is qualified as a green premium, with minimal use of hazardous substances.
