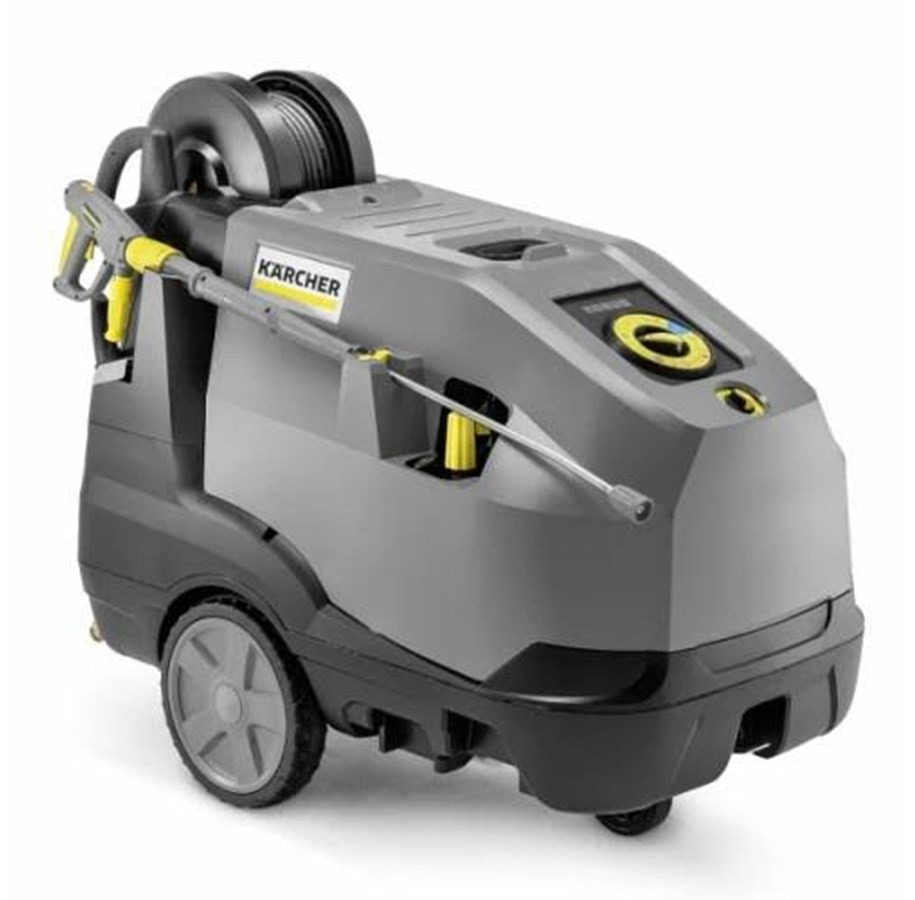

Kärcher Högtryckstvätt PROFI cleaner HDS 10/21-4 MXA
The HDS 10/21-4 MXA with automatic hose rewind and integrated Ultra Guard HP hose impresses in every way as Kärcher's most powerful hot water high-pressure cleaner in the mid-range. The hose reel allows the 20-meter long Teflon-coated hose to be rolled up and unrolled at an angle of up to 45° and also reduces the usual set-up time by just over 50 percent. In addition, the robust 3-piston axial pump with ceramic piston, the low-speed, water-cooled, 4-pole electric motor, the optimized burner design and the eco!efficiency mode ensure maximum performance and economical operation. Users also benefit from intelligent ergonomics thanks to the energy-saving EASY!Force Advanced HP gun with 1050 mm spray lance and servo control, as well as simple one-button operation and numerous storage options for accessories. The extremely maintenance-friendly machine also stands out from the crowd with 2 detergent tanks, patented nozzle technology, proven safety technology and the time-saving EASY!Lock quick-release fasteners as standard.
Automatic hose reel
Scratch-resistant and smooth Ultra Guard HD hose with Teflon® coating.
Automatic hose reel for convenient and safe storage of the 20-meter high-pressure hose.
Wide range of accessories with EASY!Lock
EASY!Force Advanced for fatigue-free working without holding force.
Pressure and water flow can be set on the Servo Control controller located between the hose and the gun.
Rotatable 1050 mm stainless steel lance.
In eco!efficiency mode, the device operates in the economical temperature range (60 °C) - and this at full water flow.
Optimal adjustment of the burner cycles reduces fuel consumption by 20% compared to full load.
Highly efficient, proven burner technology "Made in Germany".
4-pole electric motor with 3-piston axial pump.
Water-cooled motor with high efficiency and long service life.
Easily accessible water filter protects the pump from dirt particles in the water.
Safety valves, water and fuel shortage protection ensure the machine's availability.
The soft damping system (SDS) compensates for vibrations and pressure peaks in the high-pressure system.
Several storage compartments for accessories integrated into the machine
. All accessories can be stored directly on the machine. There are 2 hanging hooks for the suction hose and power cable.
Spacious storage compartment for e.g. detergent, gloves or tools.
Easy change between detergent containers 1 and 2.
Precise detergent dosing with rinsing function.
Precise dosing valve ensures low consumption.
Jogger principle with large rubber wheels and guide roller.
Integrated foot opening for easy movement over platforms.
Push handle for easy transport and manoeuvring.
One switch for all device functions.
Technical data
Current type (Ph/V/Hz)3 / 400 / 50
Flow rate (l/h)500 - 1000
Working pressure (bar/Mpa)30 - 210 / 3 - 21
Temperature (at inlet 12 °C) (°C)min. 80 - max. 155
Connection value (kW)8
Fuel oil consumption at full load (kg/h)7.3
Fuel oil consumption at eco!efficiency setting (kg/h)5.8
Connection cable (m)5
Fuel tank (l)25
Weight (with accessories) (kg)172.6
Weight including packaging (kg)184.834
Dimensions (L × W × H) (mm)1330 x 750 x 1210
Scope of delivery
Spray gun: EASY!Force Advanced
High-pressure hose: 20 m, ID 8, 315 bar
Spray lance: 1050 mm
Power nozzle
Equipment
Detergent function: 20 + 10 l tank
Integrated automatic hose reel
ANTI!Twist-
filling of the detergent tank from outside, limescale protection and fuel
LED control panel
Pressure switch
Reversible plug (3~)
2 detergent containers
Dry start protection
AREAS OF APPLICATION
Vehicle cleaning
Cleaning of devices and machines
Workshop cleaning
Cleaning of exterior surfaces
Cleaning of petrol stations
Cleaning of facades
Cleaning of swimming pools
Cleaning of sports surfaces
Cleaning during production processes
Cleaning of production equipment
