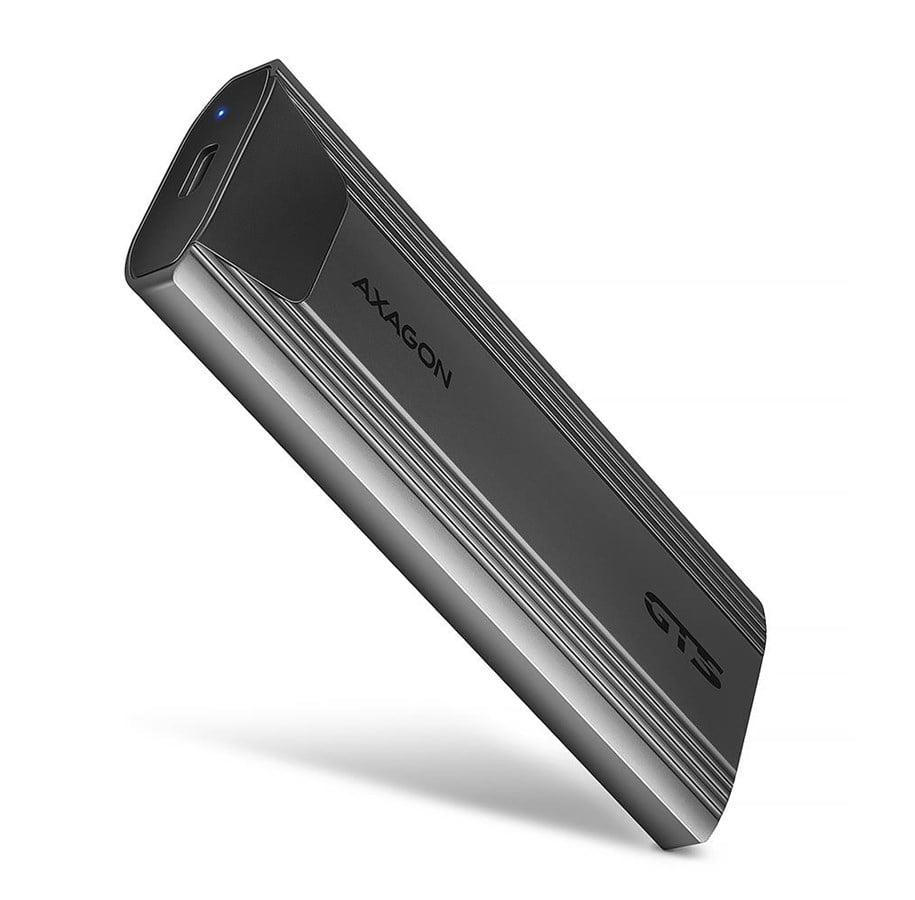

AXAGON SuperSpeed USB-C NVMe M.2 Thin Screwless Box

Universal external AXAGON EEM2-GTS2 THIN SCREWLESS box with USB 10 Gbit/s interface for M.2 NVMe or SATA SSD disks. The double-sided USB-C connector on the box enables a reliable connection. The package includes a USB-C → USB-C cable for connecting the box to a computer, and a USB-C → USB-A adapter. You can connect the box to any free USB port on a notebook.

The transmission rate is up to 10 Gbit/s thanks to the fast USB 3.2 Gen 2 interface. The external M.2 box also supports other modern features, e.g., UASP, TRIM, and enables reading S.M.A.R.T. disk status monitoring information. Standby support when idle.

A unique feature, thanks to the new chipset, is the possibility of using both M.2 NVMe and SATA disks. You don't have to think about what type of M.2 disk you put in the box. The advantage is the attachment of four different lengths of SSD cards – 30, 42, 60 and 80 mm. M.2 cards can be single-sided or double-sided. The box does not limit the capacity of inserted SSD.

Screwless box opening facilitates assembly and disassembly of the M.2 SSD. Disk replacement is quick and easy, thus expanding the possibilities of using the box, e.g., for data migration or testing.

The outer metal housing is grey with an elegant finish that prevents unwanted fingerprints.

Aluminium box body and thermal conductive pad provide very good M.2 SSD cooling. This extends its service life and prevents slowing down of disk speed, so-called “Thermal Throttling”.

By inserting an M.2 SSD in the box, you create a fast, compact, and versatile external drive for use with PCs, laptops, mobile phones, and tablets.

Input:

• USB 10 Gbit/s (USB 3.2 Gen 2), connector USB-C female
• Compatible with USB 480 Mbit/s, USB 5 Gbit/s, USB4 and Thunderbolt 3/4

Device support:

• NVMe M.2 SSD disks
• SATA M.2 SSD disks
• Designed for M key or B+M key card formats
• NGFF 75-pin M key slot for M.2 drives

Other features:

• Supports transmission rates 10 000 / 5 000 / 480 Mbit/s
• Supports M key or B+M key NVMe (PCI-Express) and SATA (AHCI) M.2 SSDs without maximum capacity limitation
• Supports M.2 drives of sizes 2230, 2242, 2260, 2280 mm
• Supports both single-sided and double-sided M.2 SSDs
• Compliant with PCI Express Base Specification Revision 3.1a
• Compliant with NVM Express 1.3 specification
• Compliant with Serial ATA 3.2 (SATA/600), bit rates up to 6 Gbit/s (600 MB/s)
• Compliant with USB Mass Storage Class specification
• Total bandwidth/transmission rate of the adapter determined by the USB interface (theoretical 10 Gbit/s)
• Real adapter bandwidth/transmission rate about 1 000 MB/s (1 GB/s), limited by USB 3.2 Gen 2 interface
• Supports BOT (Bulk-Only Transport)
• Supports UASP (USB Attached SCSI) for faster data transfer in Windows 8 and later
• Supports TRIM to limit gradual SSD performance degradation
• Supports S.M.A.R.T. monitoring of disk condition
• SSD boot support in external box
• Hot Plug support for connecting devices while running
• Full Plug and Play support
• Standby support – drive sleeps after 5 minutes of inactivity
• Power supply via USB up to 900 mA from one port is sufficient
• Blue LED indicates connection (steady) and data transmission (blinking)
• Heavy-duty aluminium body and thermal pad improves M.2 SSD cooling
• Higher box surface temperature is not a defect – heat is drained efficiently
• Connection via USB 3.2 Gen 2 type-C female
• USB type-C male/male cable 50 cm and USB type-C female/USB-A male adapter included

Other data:

• Box dimensions 112 × 40 × 14 mm
• Box weight 48 g (without cable and M.2 SSD)

Supported operating systems:

• Windows 7 / 8.1 / 10 / 11 and later, macOS, iPadOS, iOS, Linux, Chrome OS and Android
• Compatibility depends on OS version and device manufacturer support
• Note: for Windows 7, check OS support and drivers with M.2 SSD manufacturer

Package contains:

• USB-C 10 Gbit/s external box for M.2 SSD
• USB-C – USB-C cable 50 cm with USB-C – USB-A adapter
• 1 thermal conductive pad
• Multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA
• Packed in cardboard box with hanging hole
