Beautiful sparkle, reliable lifeRange of double-ended, compact, high-efficiency, discharge lamps with a stable color over lifetime and a crisp, sparkling lightProduct Benefits • Stable color impression over lifetime • High lamp efficacy results in low operating costs and low heat generation. Provides better operating costs and improved light quality versus standard quartz metal halide (MHN-TD) • Long lamp life compared with incandescent, halogen and quartz metal halide (MHN-TD) lamps • Relatively low heat output enhances comfort for shoppers and staff • All types are UV-Block for reduced fading risksProduct Features • Crisp white light • Superior color quality • Retrofit in double-ended luminairs for quartz metal halide lamps (MHN-TD), thereby allowing to reduce operating costs and improve color quality • Burning position horizontal ± 45°Environment • Good environmental choice because of high energy efficiency and long reliable life • This product is RoHS compliant • This product is covered by WEEEApplication • Shops and shop windows, offices and public buildings • Decorative outdoor: floodlighting of facades, statues and monumentsWarnings and Safety • Use only in totally enclosed luminaire, even during testing (IEC 61167, IEC 62035, IEC 60598) • The luminaire must be able to contain hot lamp parts if the lamp ruptures • Lamps may use electronic or electromagnetic control gear • Control gear must include end-of-life protection (IEC 61167, IEC 62035)
MASTER Metalhalide CDM-TD 70W 942 RX7S Product Description: Product:• Compact discharge lamps with stable color throughout the lamp's lifetime and brilliant light.Advantages:• Stable color impression throughout the lamp's lifetime.• High lamp performance resulting in lower operating costs.• Long lifespan compared to incandescent and halogen lamps.• Relatively low heat output, which increases comfort for customers and staff.• All types have UV control, which reduces the risk of fading.Features:• Warm (3000 K) or cool white (4200 K) color impression. • Good color rendering (3000 K: Ra?>?80) to very good (4200 K: Ra?>?90). • High light beam intensities are possible thanks to the small axial discharge arc and compact lamp sizes. • Horizontal burning position ±?45°Environment: • Good environmental choice due to high energy efficiency and long service life. • Covered by RoHS and WEEE directives.Application: • Shops and shop windows, offices, public buildings. • Decorative outdoor lighting: projector lighting of facades, statues, monuments.Safety: • For use only in enclosed luminaires even during testing (IEC 61167, IEC 62035, IEC 60598). The luminaire must be able to contain hot parts if the lamp breaks. Can be used with electronic or electromagnetic ballasts. Ballast must include end-of-life protection (IEC 61167, IEC 62035).Technical specifications:Width(mm):29Height(mm):143Mains voltage(V):89Voltage(V):89

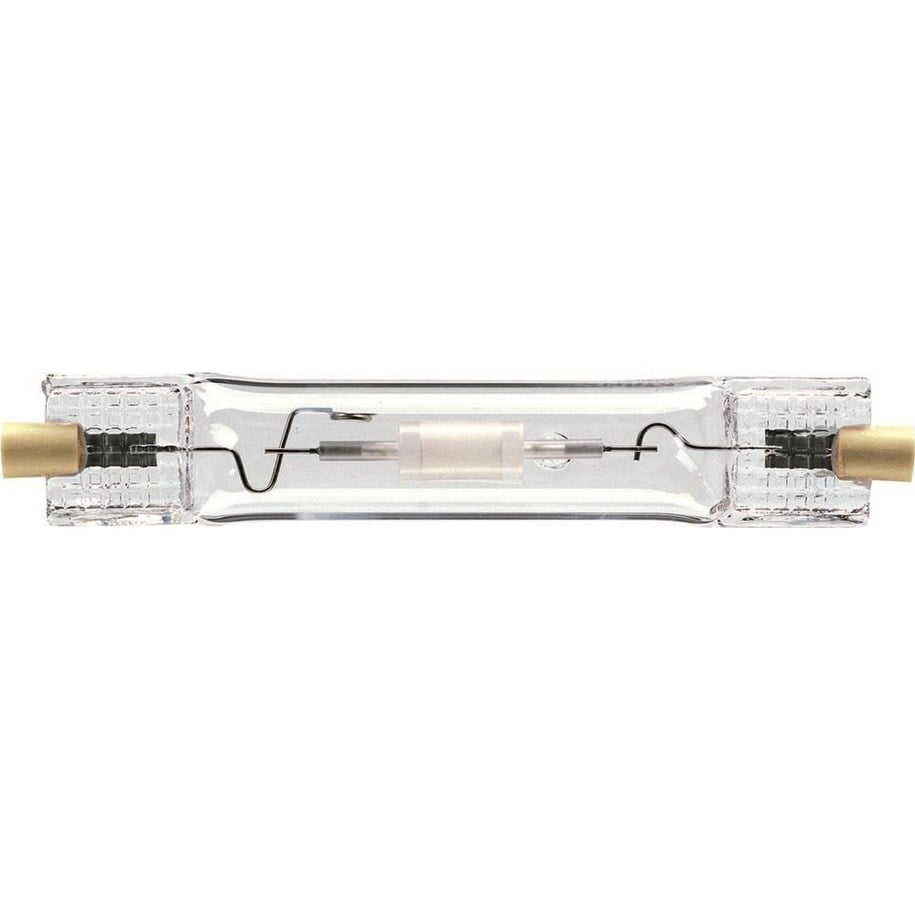

Philips MASTERColour CDM-TD - CMG-glödlampa (Ceramic Metal Halide) - form: T22 - klar finish - Rx7s - 71.5 W - svalt vitt ljus - 4200 K
URL med QR-kod för energimärke
Https://eprel.ec.europa.eu/qr/473339
Typ av ljuskälla
CMG-glödlampa (Ceramic Metal Halide)
Form
T22
Glödlampefinish
Klar
Uttagstyp
Rx7s
Watt-tal
71.5 W
Energieffektivitetsklass
G
Belysningsfärg
Svalt vitt ljus
Färgtemperatur
4200 K
Ljusflöde
5450 lumen
Dimningsbar
Nej
Erfordrad spänning
AC 98 V
Allmänt
URL med QR-kod för energimärke
Https://eprel.ec.europa.eu/qr/473339
Ljuskälla
Typ
CMG-glödlampa (Ceramic Metal Halide)
Form
T22
Glödlampefinish
Klar
Uttagstyp
Rx7s
Watt-tal
71.5 W
Energieffektivitetsklass
G
Energiförbrukning per 1000 timmar
72 kWh
Lampström
1.4 A
Belysningsfärg
Svalt vitt ljus
Färgtemperatur
4200 K
Färgåtergivningsindex
92
Färgkod
942
Ljusflöde
5450 lumen
Upplysningseffektivitet
76 lm/W
Uppvärmningstid
30 sek
Dimningsbar
Nej
Kvicksilverinnehåll
4.7 mg
Funktioner
Glittrande effekt, p45 brinnande läge
Strömkrav
Erfordrad spänning
AC 98 V
Diverse
Standarder som följs
IEC 61167, ANSI M139/E, IEC 62035, IEC 60598
Mått och vikt
Diameter
22 mm
Längd
119.63 mm
Vikt
21 g
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
