Varunummer: 2872096

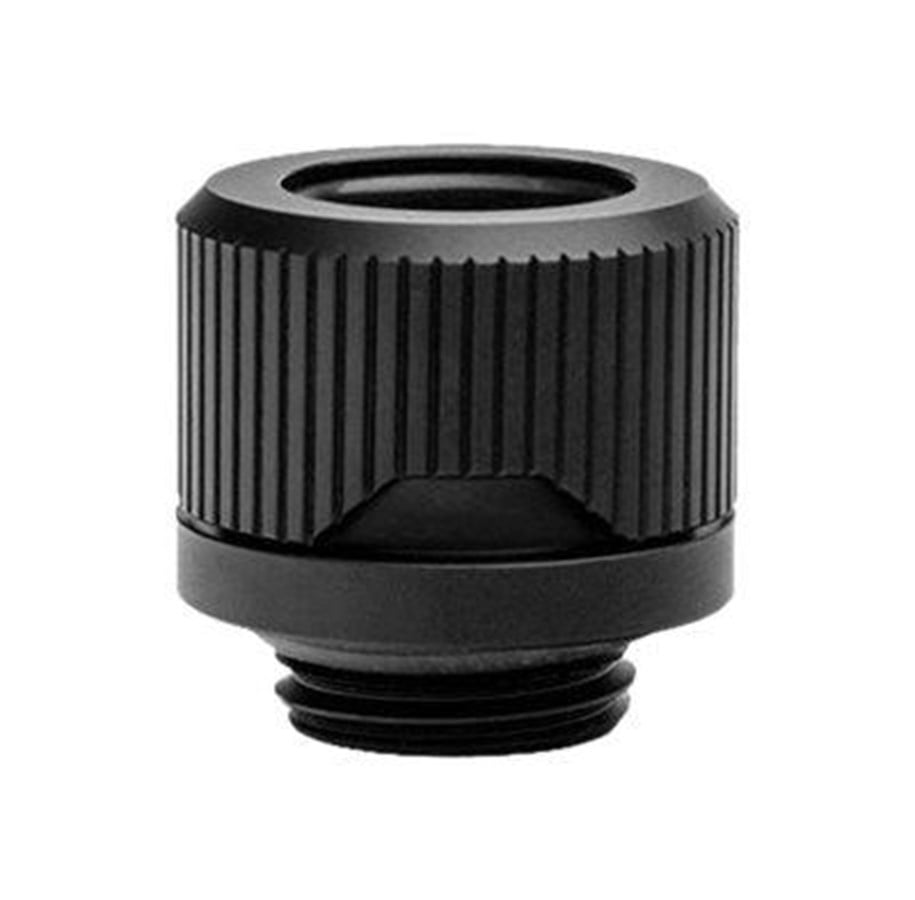

EK Water Blocks EK-Quantum Torque HTC 12
EK-Quantum Torque 6-Pack HDC 12 is a fitting multipack containing six EK-Quantum Torque HDC fittings.
These are EK's premium 12mm hard-tube compression fittings designed for use with solid tubing such as Acrylic and PETG. With a non-intrusive, yet striking look, and with NO added branding at all.
539,00 kr
431,20 kr exkl. moms
Billigaste frakt: 49,00 kr
Beställningsvara, 7-8 vardagar leveranstid
Technical data:
- Finish: Satin black
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 20mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Made in Europe - Slovenia!
PLEASE NOTE:
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
- Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
- Do not use excessive force when inserting solid tube!
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
- It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.
- The aesthetic rings are sold separately.
- Finish: Satin black
- Thread: G1/4" BSP; 4.5mm male thread length
- Supported tube: 12mm OD
- The outer diameter of a fitting: 20mm
- Installed height: 15mm
- Compatible solid tubing: Acrylic, PETG, Copper, Brass, Stainless Steel
Made in Europe - Slovenia!
PLEASE NOTE:
- The use of specifically engineered coolants that contain corrosion, scale, and biological inhibitors is mandatory to prevent damage to your nickel-plated fittings! EK is offering a selection of such products in the coolants section.
- Please wet the gasket (o-ring) using drops of water prior to installing the solid tube.
- Do not use excessive force when inserting solid tube!
- Do not use excessive force when attaching fitting barbs using Allen Key 9mm in order to prevent damage!
- It is mandatory to chamfer the edges of the freshly cut solid tube in order to prevent gasket (o-ring) damage. EK recommends a 0.5mm x 45° chamfer.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
- Black EK-Quantum Torque series fittings are intentionally not painted on the inside to reduce the level of possible pollutants in the loop.
- The aesthetic rings are sold separately.
Producent
Varunummer
2872096
Modell
3831109824443
EAN
3831109824443
Till producentens hemsida
Produkttyp
Torque wrench end fitting
Produktens färg
Svart
Insexnycklar (imperial)
1/4"
Antal per förpackning
6 styck
Ursprungsland
Slovenien
Egenskaper
Produkttyp
Torque wrench end fitting
Produktens färg
Svart
Insexnycklar (imperial)
1/4"
Antal per förpackning
6 styck
Logistikdata
Ursprungsland
Slovenien
