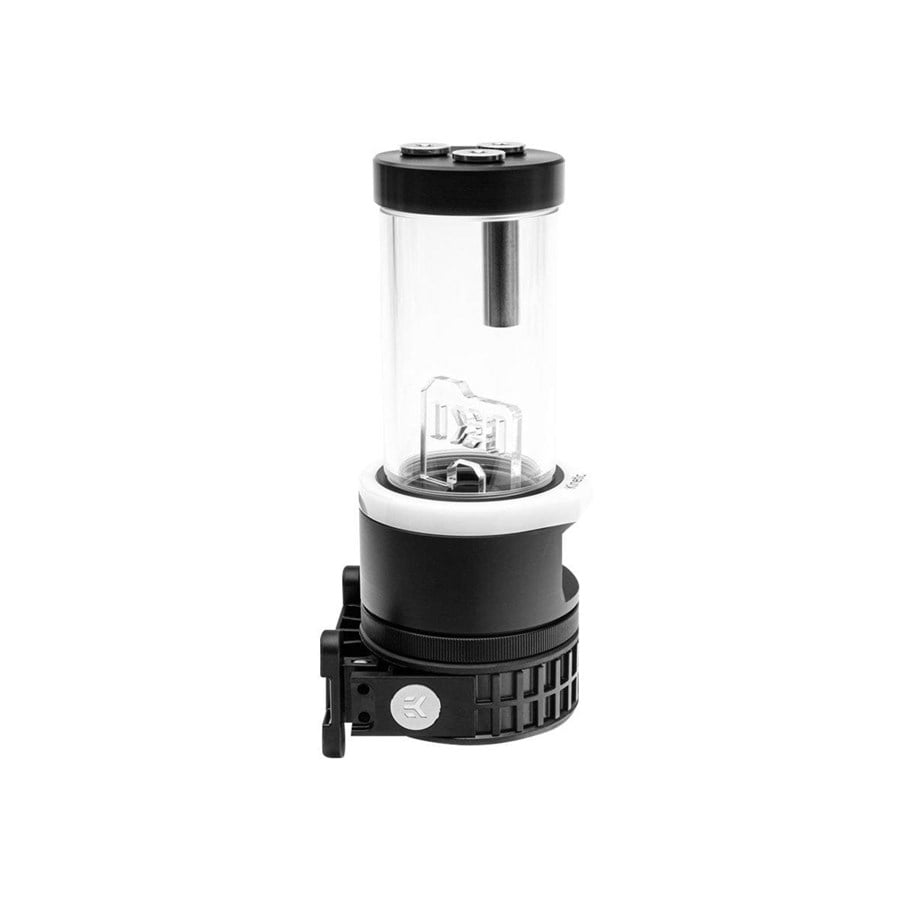

EK Water Blocks EK-Quantum Kinetic TBE 200 D5 PWM D-RGB

Pump electrical and mechanical properties:
- Motor: Electronically commuted spherical motor
- Rated voltage: 12V DC
- Power consumption: 23W
- Maximum pressure head: 3.9m
- Maximum flow: 1500L/h
- Maximum system temperature: 60°C
- Materials: Stainless steel, PPS-GF40, EPDM O-rings, hard coal
- Power connector: SATA power and 4-Pin PWM FAN connector

Technical specifications:
- Reservoir diameter 60mm
- Reservoir free volume: 205mL
- Overall unit height: 200mm
- Mounting hole pattern: 65x34mm
- D-RGB connector standard 3-pin (5+, Digital, Blocked, Ground)

Operational regime:
- PWM duty cycle: ~ 20-100%
- Default behavior: Runs at 100% duty cycle when no PWM feedback signal is present

Enclosed:
- EK-Quantum Kinetic TBE 200 D5 PWM D-RGB
- Mounting clip with rubber insert
- Self-adhesive mounting hole pattern sticker
- Mounting mechanism (incl. required Allen keys)
- Installation manual

Made in Slovenia - EU!
Pump motor made in Hungary - EU!

PLEASE NOTE:
- EK-D5 PWM G2 is an enhanced variant of the world renown Xylem D5 with improved power management control, which allows for better speed control trough motherboard BIOS or dedicated fan controller.
- The D5 pump is water lubricated, in other words, it uses a wet rotor design. Therefore, it is strongly recommended not to run the pump dry.
- This product should NOT be installed with any aluminum Fluid Gaming parts!
