Varunummer: 2293322

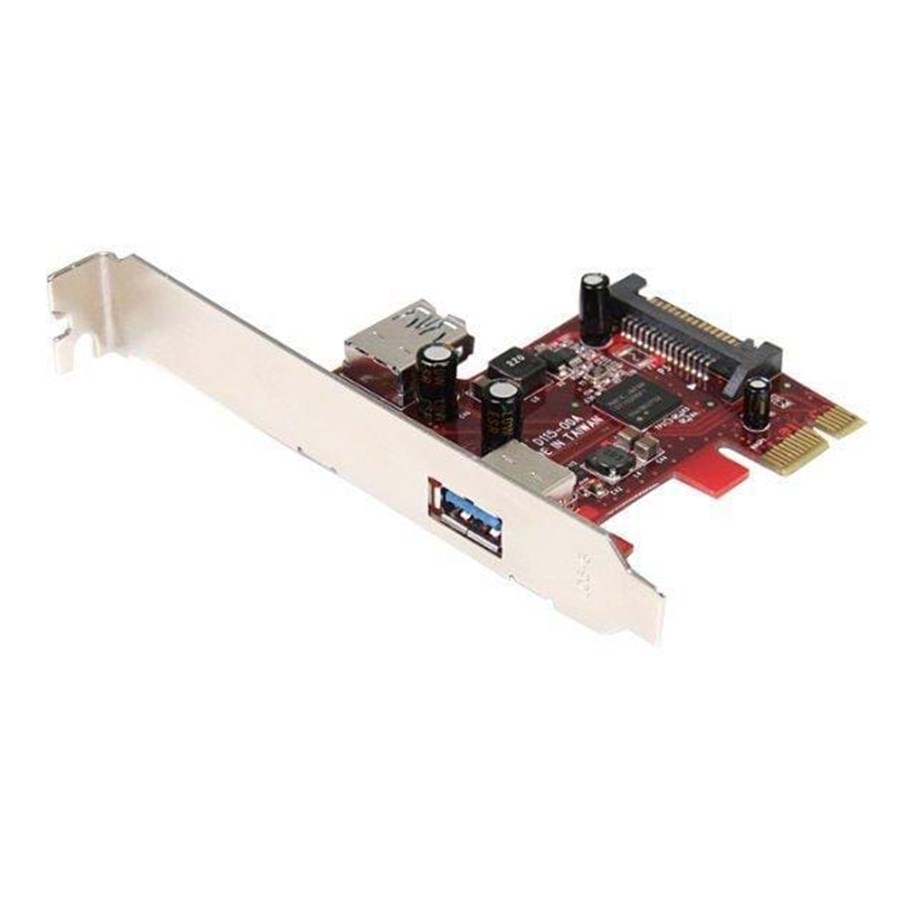

StarTech.com 2-port PCI Express SuperSpeed ??USB 3.0-kort - 1 Intern 1 Extern - USB-adapter
1 Internal 1 External, USB-adapter, PCI Express 2.0 låg, USB, Hi-Speed USB, SuperSpeed USB 3.0, 2 portar
513,00 kr
410,40 kr exkl. moms
Billigaste frakt: 49,00 kr
Leverantör, 5-6 vardagar leveranstid
Add one internal and one external SuperSpeed USB 3.0 to your PC. Providing data transfer speeds up to 10x faster than USB 2.0, this PCI Express USB 3.0 card enables you to access your data and transfer files faster than ever, by adding one internal USB 3.0 port and one external USB 3.0 port to your PCI Express-equipped PC.Featuring a native NEC PCI Express host controller chipset, the new USB 3.0 standard supports transfer rates of up to 5Gbps, while still providing connectivity and support for the older USB 2.0 (480Mbps) and 1.1 (12Mbps) devices.In addition to providing considerably faster transfer rates, the PEXUSB3S11 USB 3.0 card draws power from the computer power supply through a SATA style power connector - a perfect solution for systems that have a limited number of LP4 connectors available. The card will supply 5V, 900mA to the USB 3.0 port, allowing more and more external devices to operate without the need of an additional power source. The inclusion of an internal USB 3.0 connection provides the added benefit of compatibility to future USB 3.0-based internal storage solutions.
Producent
Varunummer
2293322
Modell
PEXUSB3S11
EAN
0065030840040
Till producentens hemsida
Produktbeskrivning
StarTech.com 2 port PCI Express SuperSpeed USB 3.0 Card with UASP Support - 1 Internal 1 External - Dual Port PCIe USB 3.0 Adapter (PEXUSB3S11) - USB-adapter - PCIe 2.0 - 2 portar
Typ av enhet
USB-adapter
Formfaktor
Instickskort - låg profil
Gränssnittstyp (buss)
PCI Express 2.0
Dimensioner (BxDxH)
7.6 cm x 12.1 cm x 1.9 cm
Vikt
40 g
Antal portar
2 portar
Datalänkprotokoll
USB, USB 2.0, USB 3.0
Dataöverföringshastighet
5 Gbps
Standarder som följs
USB 1.1, USB 2.0, USB 3.0
Systemkrav
Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2
Designat för
StarTech.com 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD and Surge Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expansion Hub with Locking Ports - Metal Construction (5G4AINDNP-USB-A-HUB)
Allmänt
Typ av enhet
USB-adapter - 2 portar
Formfaktor
Instickskort - låg profil
Gränssnittstyp (buss)
PCI Express 2.0
Nätverk
Anslutningsteknik
Kabelansluten
Datalänkprotokoll
USB, USB 2.0, SuperSpeed USB 3.0
Dataöverföringshastighet
5 Gbps
Standarder som följs
USB 1.1, USB 2.0, USB 3.0
Expansion/Anslutning
Gränssnitt
1 x USB 3.0 - 9-stifts USB typ A (extern)
1 x USB 3.0 - 9-stifts USB typ A (intern)
1 x USB 3.0 - 9-stifts USB typ A (intern)
Kompatibla kortplatser
1 x PCI Express 2.0
Diverse
Inkluderade tillbehör
Hållare för låg version
Standarder som följs
FCC, RoHS
Programvara / Systemkrav
Operativsystem erfordras
Microsoft Windows XP, Microsoft Windows Server 2003, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows Server 2008 R2
Dimensioner och vikt
Bredd
7.6 cm
Djup
12.1 cm
Höjd
1.9 cm
Vikt
40 g
Miljöparametrar
Min temperatur vid drift
0 °C
Max temperatur vid drift
50 °C
Luftfuktighet vid drift
0 - 85%
Kompatibilitetsinformation
Designat för
StarTech.com 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub w/15kV Air/8kV Contact ESD and Surge Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expansion Hub with Locking Ports - Metal Construction (5G4AINDNP-USB-A-HUB)
