NODE Series

The Node Series of cases offers a stylish way to integrate the computer into your home. With the flexibility to serve as an HTPC, fileserver or media and gaming station, the Node series delivers endless possibilities to combine design and entertainment.

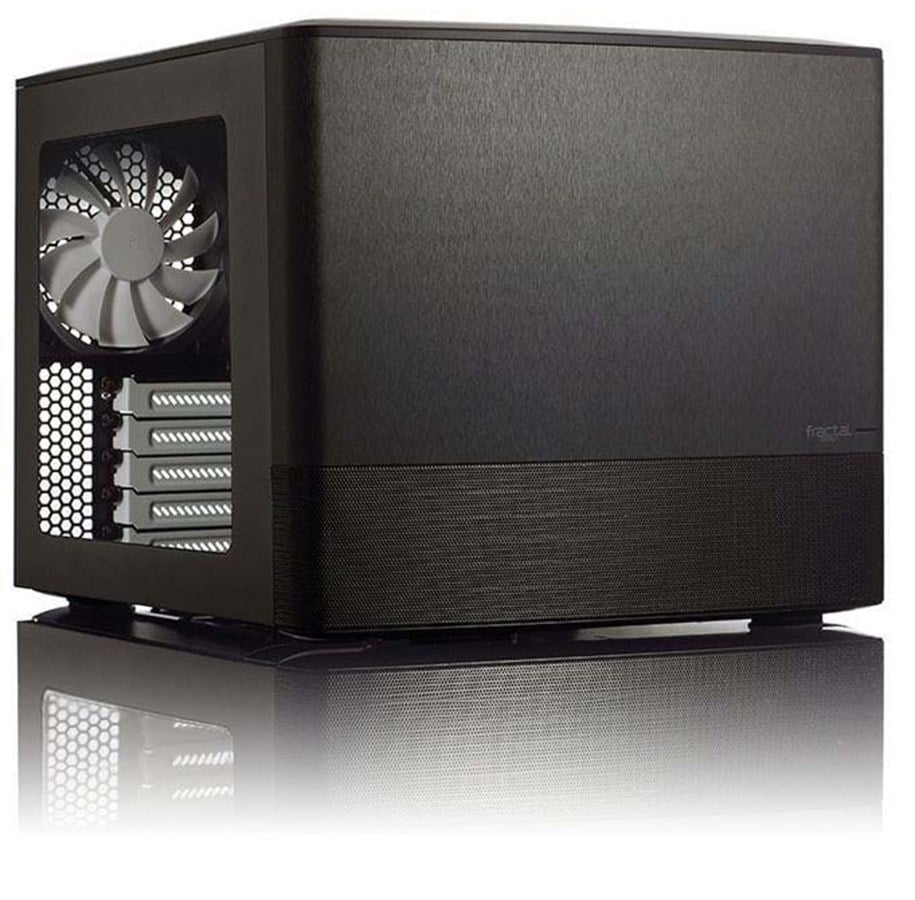

The Node 804 is a micro ATX chassis which focuses on cooling performance and maximum configurability, all packed in an interesting new form factor with Scandinavian elegant design.

The dual chamber layout separates hot running components from the cooler ones and allows for unrestricted airflow over the motherboard, processor and graphics card.

The case comes with three excellent 120mm fans but can be upgraded with several additional fans if needed.
Featuring plenty of options for placing water cooling components, tall heat sinks and hard drives.
The flexibility of this case really gives the users the possibility to create their optimal system build.

Key features

• Highly effective dual chamber case layout for best possible cooling.
• Minimalistic design with an elegant brushed aluminum front panel
• Unique hard drive mounting system, fitting up to 8 x 3.5″, 4 x 2.5” or up to 10 x 3.5”, 2 x 2.5″ drives HDD/SSD
• Three Fractal Design Silent Series R2 fans included with the case and space for an additional 7 fans.
• Excellent water cooling support with space for up to 4 radiators simultaneously.
• All intakes feature removable dust filters providing a dust-free interior.
• Featuring a window side panel to show off your set up in style.
• Additional space in the front to mount a slim slot-in ODD, optical bay drive, and 2 x 2.5″ drives.
• Fan controller included.
• Five expansion slots that allows for multiple GPU setups.

Specifications

• Micro ATX and Mini ITX motherboard compatibility
• 8 - 3.5″       HDD positions
• 2 - 2.5″       dedicated SSD unit positions
• 2 - Extra positions for either 3,5″ or 2,5″ drives
• 5 expansion slots
• 1 additional space in the front for a 12.7mm slim/slimline ODD
• 10 - Fan positions (3 x 120mm  Silent Series R2 fans included)
• Filtered fan slots in front, top and bottom
• CPU coolers up to 160 mm in height
• PSU compatibility: ATX PSUs up to 260 mm deep
• Graphics card compatibility: Graphics cards up to 320mm in length. Graphics cards up to 290 mm in length may be installed if a fan is installed in the lower position in the front.
• Velcro strap for easy cable management
• Clear Window side panel included
• Colors available: Black
• Case dimensions (WxHxD): 344 x 307 x 389 mm
• Net weight: 6 kg
• Package dimensions (WxHxD): 370 x 468 x 412 mm
• Package weight: 7.7kg

Cooling system

• Front: 4 – 120mm fans (included is one hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)
• Rear: 1 - 120/140mm fan (included is a hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)
• Rear: 1 - 120mm fan slots (included is 1 hydraulic bearing 120mm Silent Series R2 fan, 1000 RPM speed)
• Top: 4 - 120/140mm fans (not included)
• Fan controller: 1 - Integrated fan controller for up to 3 fans (included)

Water cooling compatibility

• Front (right chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed.
• Front (left chamber) - 240 mm radiator configurations up to 60 mm thick (with fans) and 278 mm tall are allowed. Using a radiator in this position prevents the use of a fan in the top position just next to it.
• Top (right chamber) - 240/280 mm radiators up to 130mm thick (with fans) may be fitted if the HDD drive bays are taken out or placed elsewhere. No limitation to thickness.
• Top (left chamber) - 240 mm radiator configurations up to 130 mm thick (with fans) will fit. Radiators in this position limits the height of memory modules to 48 mm tall.

*Maximum radiator configuration: 1x240mm,1x280mm and 2x120mm radiators simultaneously.

Front interface

• 2 - USB 3.0
• Audio in/out
• Power button with LED (blue)
• HDD activity LED (white)

Package contents

• Node 804 computer case
• Accessory box
• User manual
