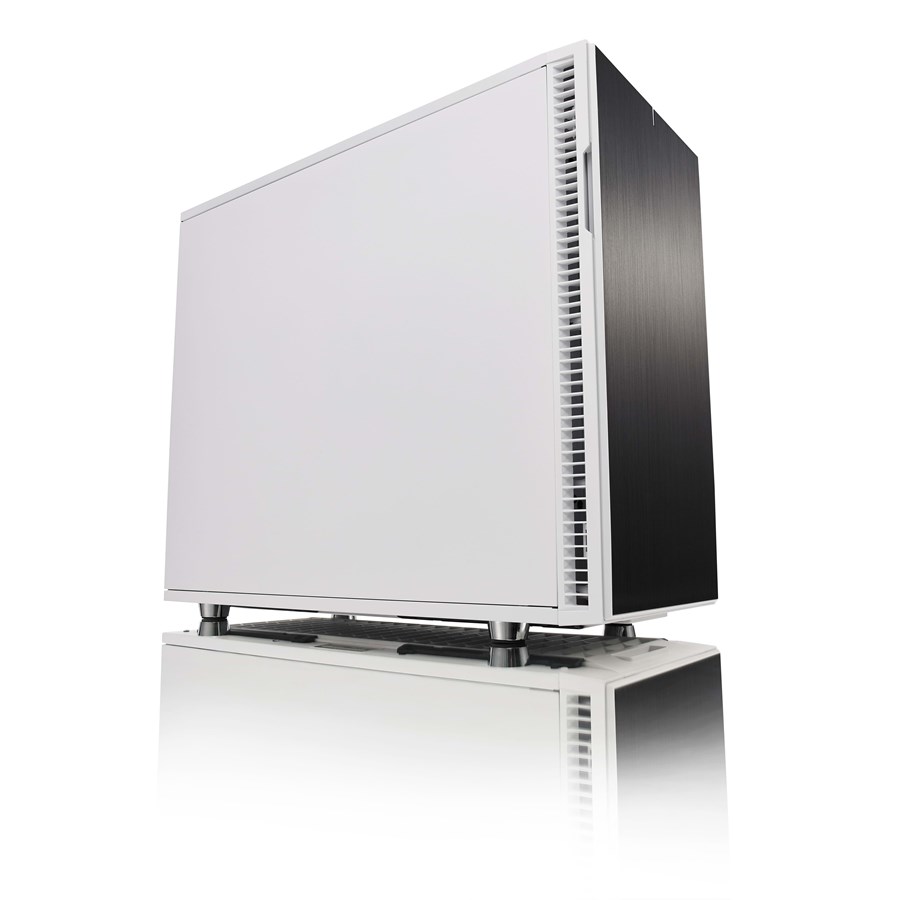

Fractal Design Define R6 USB-C - White - Chassi - Miditower - Vit
Miditower, Extended ATX, ingen strömförsörjning (stöder ATX upp till 300mm lång), front med 2 x USB 2.0, 2 x USB 3.0, 1 x USB 3.1 Gen2 Type C & ljudanslutning, 2 x 2.5" / 6 x 2.5"/3.5" expansionsfack, radiatorstöd: stöder upp till 420mm radiator, max grafikkort storlek: 44 cm, medföljer fläktar: 2 x 140mm front / 1 x 140mm baksida, ljuddämpat, vit
Detaljer
Producent: Fractal DesignVarunummer: 2679203
Modell: FD-CA-DEF-R6C-WT
EAN: 7340172701194
Till producentens hemsida
www.fractal-design.com/| Produktbeskrivning | Fractal Design Define Series R6 - tower - utökad ATX |
| Typ av produkt | Systemskåp |
| Kombinerad med | Connect D1 USB 3.1 Gen 2 Type-C Upgrade Kit |
| Formfaktor | Tower |
| Färg | Vit |
| Inbyggda enheter | 3 x Fractal Design Dynamic X2 GP-14, Nexus+ Smart Hub |
| I/O-kontakter | 2 x USB 2.0 2 x USB 3.0 1 x hörlurar 1 x mikrofon 1 x USB 3.1 Gen 2 |
| Moderkort som stöds | ATX, microATX, Extended ATX, ITX |
| Egenskaper hos systemkabinett | Dammfilter till överdel, främre dammfilter, ModuVent, kabelhanteringssystem, stöder 120 mm element bak, skruvlösa sidopaneler, stöder 120/140/240/280/360 mm element i främre panel, stöder 120/240/360 mm element högst upp, plats för 120/140/240/280 mm element längst ner, vertikal/horisontell grafikkortsmontering, nedre + PSU-dammfilter |
| Nätdel | Inget nätaggregat |
| Specifikationer | ATX |
| Dimensioner (BxDxH) | 23.3 cm x 54.3 cm x 46.5 cm |
| Vikt | 12.4 kg |
Allmänt | |
|---|---|
| Kombinerad med | Connect D1 USB 3.1 Gen 2 Type-C Upgrade Kit |
| Formfaktor | Tower |
| Maxstorlek för moderkort | Utökad ATX |
| Moderkort som stöds | ATX, microATX, Extended ATX, ITX |
| Specifikationer | ATX |
| Antal interna fack | 8 |
| Inbyggda enheter | 3 x Fractal Design Dynamic X2 GP-14, Nexus+ Smart Hub |
| Produktmaterial | Eloxerad aluminium, ljuddämpat stål |
| Färg | Vit |
| Kylsystem | Front: 140 mm fläkt x 2 / intag / 3 x 120 mm eller 2 x 140 mm fläkt stöds Ovansidan: 120 mm fläktmontering x 3 / plats för 2 x 140 mm fläktar, öppen layout, plats för 3 x 120/140 mm fläktar Bakre: 140 mm fläkt x 1 / utblåsning / stöd för 1 x 120/140 mm fläkt Nedre del: 120/140 mm fläktmontering x 2 |
| Max. höjd på CPU-kylare | 185 mm |
| Max. längd på videokort | 440 mm |
| Egenskaper hos systemkabinett | Dammfilter till överdel, främre dammfilter, ModuVent, kabelhanteringssystem, stöder 120 mm element bak, skruvlösa sidopaneler, stöder 120/140/240/280/360 mm element i främre panel, stöder 120/240/360 mm element högst upp, plats för 120/140/240/280 mm element längst ner, vertikal/horisontell grafikkortsmontering, nedre + PSU-dammfilter |
Expansion/Anslutning | |
|---|---|
| Expansionsfack | 6 (totalt)/ 6 (ledig) x intern - 2,5 tum/3,5 tum delad 2 (totalt)/ 2 (ledig) x intern - 2.5" |
| Expansionskortplatser | 9 |
| Gränssnitt | 2 x USB 2.0 2 x USB 3.0 1 x hörlurar - mini-jack 1 x mikrofon - mini-jack 1 x USB 3.1 Gen 2 - USB-C |
Diverse | |
|---|---|
| Inkluderade tillbehör | Tillbehörslåda |
Strömtillförsel | |
|---|---|
| Nätdel | Inget nätaggregat |
Mått och vikt | |
|---|---|
| Bredd | 23.3 cm |
| Djup | 54.3 cm |
| Höjd | 46.5 cm |
| Vikt | 12.4 kg |
Designed from the ground up, the Define R6 goes beyond iteration with a profound stride of innovation – the latest and largest step in the legacy of the world-renowned Define Series.
Seamless tempered glass and sound dampened steel panels with an elegant push-to-lock latching mechanism encase an entirely redesigned interior with unprecedented component support and storage flexibility. Six 3.5”/2.5” drives and two 2.5” drives can be installed with precision placement in countless configurations throughout the case.
The spacious and fully adaptable framework of the Define R6 sports nine fan mounts, integrated PWM fan hub and support for radiators up to 420mm, making it the perfect platform for building your dream water loop. Improved third generation ModuVent™ technology allows an effortless transition from steel-clad sound dampened top panel to filtered high airflow multi-fan ventilation setup.
Expanding on the timeless elegant form and silent modular function that brought so much success to its predecessors, the new Define R6 offers the most demanding hardware enthusiast a solid foundation and flexible framework with limitless potential.
Key features
- Optimized for silence with high-density industrial dampening on side, top and front panels
- USB 3.1 Gen 2 Type-C with Fast Charging support and up to 10Gbps transfer speeds
- Reversible front door with anodized aluminum cover and dual-handed mounting system for adaptability with elegance
- Nine fan positions with intuitive layout and clear airflow paths offer massive cooling capacity
- Nexus+ Smart Hub offers superior fan control of six additional case fans and three PWM devices via your motherboard
- Three silent, airflow-optimized Fractal Design Dynamic X2 GP-14 140 mm fans come pre-installed, ensuring optimal airflow via two intake fans and a single exhaust
- Extensive water cooling support with room for up to a 420 mm radiator in the top, 360 mm in the front, and 280 mm in the base
- Power supply shroud and Modular Storage Plate conceal HDD trays and excess cabling for a clean, clutter-free interior
- Third generation ModuVent™ technology gives users the choice between a soundproof steel cover or filtered multi-fan ventilation in the top panel
- Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and front access for convenience
- Modular Storage Plate lets users easily convert between the Standard Layout for maximum storage capacity or the new Open Layout for superior water cooling support and clear air flow paths
- Vertical 2.5 slot GPU mount showcases your graphics hardware with full visibility (PCIe riser sold separately)
- Highly modular interior includes six universal SSD/HDD trays that can be independently repositioned to suit components, cooling, and cable routing
- Customizable 2.5” storage solution consists of two brackets and a choice of four tray locations to keep drives hidden behind the motherboard tray or display them prominently on top of the PSU shroud
Specification
| 3.5"/2.5" Universal drive brackets | 6 |
Dedicated 2.5" drive brackets | 2 |
Dedicated 5.25" drive bracket | 1 (removable) |
Expansion slots | 7 + 2 vertical |
Motherboard compatibility | EATX (up to 285 mm wide), ATX, mATX, ITX |
Power supply type | ATX |
Front ports | 1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O |
Total fan mounts | 9 |
Front fan | 3 x 120 mm or 2 x 140 mm, (2 x Dynamic X2 GP-14 included) |
Top fan | Standard layout: 3 x 120 or 2 x 140 Open layout: 3 x 120/140 mm |
Rear fan | 1 x 120/140 mm (1 x Dynamic X2 GP-14 included) |
Bottom fan | 2 x 120/140 mm |
Dust filters | Bottom fan + PSU Front fans Top panel |
Front radiator | 120/240/360 mm 140/280 mm |
Top radiator | Standard layout: - 120/240/140/360 mm (max 35 mm motherboard component height) Open layout: - 120/240/360 mm - 140/280/420 mm (max 35 mm motherboard component height) |
Rear radiator | 120 mm |
Bottom radiator | 120/240 mm 140/280 mm |
PSU max length | 300 mm |
GPU max length | Max 440 mm with front fan mounted Standard layout: Maximum width 155 mm (including power connectors) for graphics cards longer than 300 mm. |
CPU cooler max height | 185 mm |
Cable routing space | 23 mm |
Cable routing grommets | Yes |
Fixed velcro straps | Yes |
Tool-less push-to-lock | Both side panels |
Captive thumbscrews | HDD brackets, SSD brackets |
Left side panel | Industrial sound-dampened steel |
Right side panel | Industrial sound-dampened steel |
Dimensions | Define R6 USB-C |
Case dimensions (LxWxH) | 543 x 233 x 465 mm |
Case dimensions w/o feet/protrusions/screws | 535 x 233 x 448 mm |
Net weight | 12.4 kg |
Package dimensions (LxWxH) | 535 x 325 x 650 mm |
Package weight | 14.2 kg |
Package contents
- Define R6 USB-C computer case
- User manual
- Accessory box
Additional information
- Product code: FD-CA-DEF-R6C-WT
- EAN: 7340172701194
- UPC: 843276101190
- JAN: 4537694257466
