Varunummer: 2470596

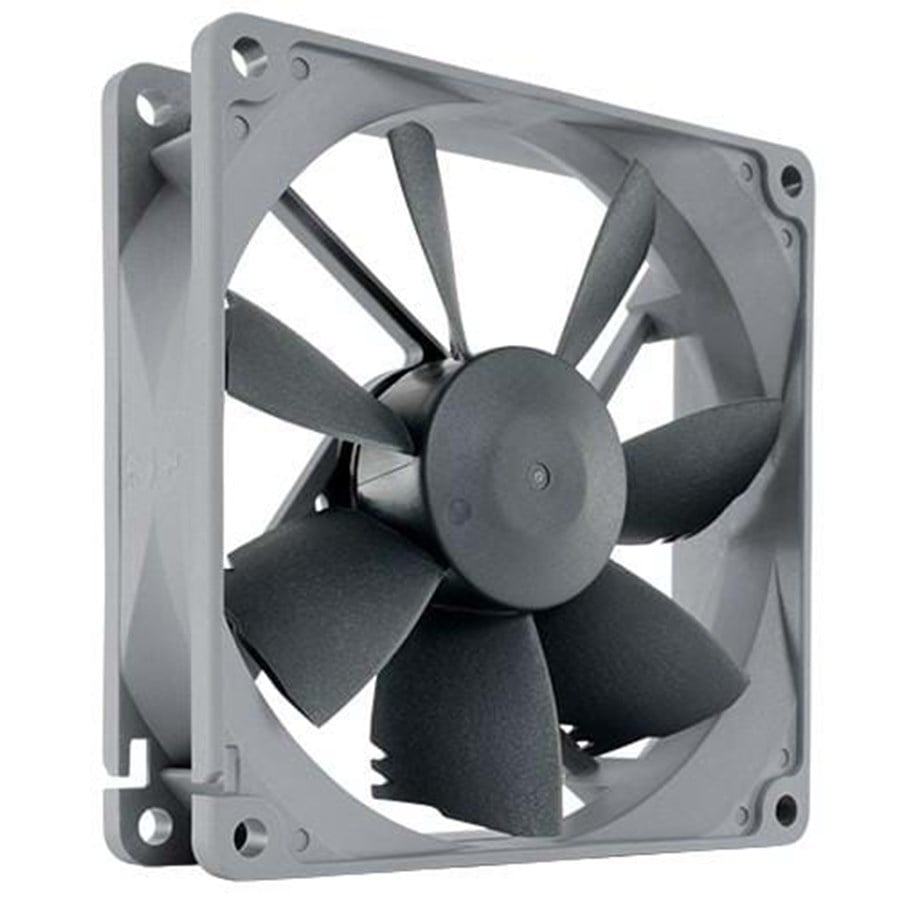

Noctua Redux NF-B9 redux-1600 PWM - lådfläkt - Chassi fläkt - 92mm - Grå - 17 dBA

Cabinet cooler, size: 92mm x 92mm x 25mm (HxWxD), noise level: max 17.6 dBA, air flow: max 37.9 CFM, fan RPM: 350 -1600 ±10%, PWM controlled, 4 pin motherboard connection, gray frame with black blades.

Läs mer
166,00 kr 132,80 kr exkl. moms
Billigaste frakt: 49,00 kr
Beställningsvara, 14-15 vardagar leveranstid

The classic NF-B9 is a long-standing favourite among enthusiast users around the world and helped to found Noctua’s reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-B9 premium fan. Its industry grade SSO-Bearing, over 150.000 hours MTBF rating and full 6 years manufacturer’s warranty make the NF-B9 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1600rpm PWM version features Noctua’s proprietary NE-FD1 PWM IC for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.

Proven NF-B9 design

Proven NF-B9 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-B9. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-B9 has become an established reference for quiet 92mm fans.
Streamlined redux edition

Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
Vortex-Control Notches

Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.
Bevelled Blade Tips

Bevelled Blade Tips

Reducing critical rotor stator interaction, Bevelled Blade Tips permit to combine extended leading edges and a higher blade surface area with quieter operation and thus form a cornerstone of the fan's outstanding efficiency.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic speed control via PWM, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.
Optional accessories

Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.

Producent
Varunummer
2470596
Modell
NF-B9 redux-1600 PWM
EAN
4716123315315
Till producentens hemsida
Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
9,2 cm
Rotationshastighet (min)
350 RPM
Rotationshastighet (max)
1600 RPM
Ljudnivå (hög hastighet)
17,6 dB
Maximalt luftflöde
64,3 cfm
Maximalt lufttryck
1,61 mmH2O
Medeltid mellan fel (MTBF)
150000 h
Produktens färg
Svart, Grå
Antal fläktar
1 fläkt/-ar
Strömförbrukning (vanlig)
0,96 W
Spänning
12 V
Högsta strömstyrka
0,11 A
Bredd
92 mm
Djup
25 mm
Höjd
92 mm
Förpackningens bredd
140 mm
Låddjup
34 mm
Förpackningens höjd
150 mm
Vikt inkl. förpackning
160 g
Anslutning
3-pin
Harmonized System (HS)-kod
84733080

Prestanda

Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
9,2 cm
Rotationshastighet (min)
350 RPM
Rotationshastighet (max)
1600 RPM
Ljudnivå (hög hastighet)
17,6 dB
Maximalt luftflöde
64,3 cfm
Maximalt lufttryck
1,61 mmH2O
Medeltid mellan fel (MTBF)
150000 h

Design

Produktens färg
Svart, Grå
Antal fläktar
1 fläkt/-ar

Strömtillförsel

Strömförbrukning (vanlig)
0,96 W
Spänning
12 V
Högsta strömstyrka
0,11 A

Vikt & dimension

Bredd
92 mm
Djup
25 mm
Höjd
92 mm
Förpackningens bredd
140 mm
Låddjup
34 mm
Förpackningens höjd
150 mm
Vikt inkl. förpackning
160 g

Övrigt

Anslutning
3-pin

Logistikdata

Harmonized System (HS)-kod
84733080

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
