Varunummer: 2407421

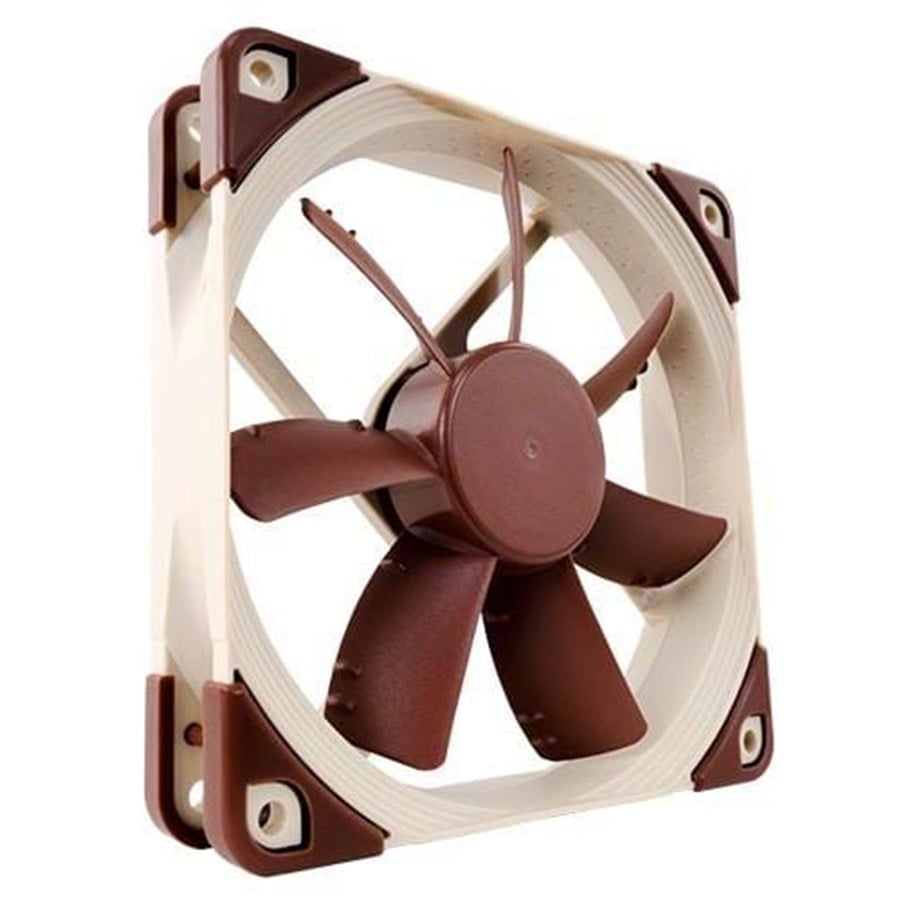

Noctua NF-S12A FLX - lådfläkt - Chassi fläkt - 120mm - Brun - 17 dBA

Cabinet cooler, size: 120mm x 120mm x 25mm (HxWxD), noise level: 17.8 dBA, air flow: 63.3 CFM, fan RPM: 700 - 1200 ±10%, with a three-pin motherboard and four-pin Molex connection, brown.

Läs mer
273,00 kr 218,40 kr exkl. moms
Billigaste frakt: 49,00 kr
Beställningsvara, 12-13 vardagar leveranstid

Award-winning S12 design

Award-winning S12 design

The NF-S12A features the third evolution of Noctua's classic Straight Blade Design that has earned its S12 series countless recommendations from hardware journalists and enthusiasts around the world. Further optimised for even better airflow/noise efficiency, it makes the NF-S12A an ideal quiet case fan.
Anti-Stall Knobs

Anti-Stall Knobs

The NF-S12A's Anti-Stall Knobs reduce flow separation phenomena in medium to high impedance situations and thereby increase the fan's stall margin. This means that the NF-S12A is even more versatile than its renowned predecessor and can achieve better performance on heatsinks and radiators.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated anti-vibration pads

Integrated anti-vibration pads

Integrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the NF-S12A remarkably quiet even at very close distances.
3 speed settings for full flexibility

3 speed settings for full flexibility

Providing 1200, 900 and 700 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-S12A FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved.
SSO2 Bearing

SSO2 Bearing

The NF-S12A features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
Metal bearing shell

Metal bearing shell

In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-S12A sports a CNC milled bearing shell made entirely from brass.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-S12A features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty.

Chassi fläkt

Producent
Varunummer
2407421
Modell
NF-S12A FLX
EAN
4716123314905
Till producentens hemsida
Produktbeskrivning
Noctua NF-S12A FLX - lådfläkt
Produkttyp
Lådfläkt
Förpackningens innehåll
Ultralågbrusadapter (U.L.N.A.), Lågbrusadapter (L.N.A.), 4 vibrationsisolatorer, 3- till 4-stifts strömadapter, förlängningssladd (30 cm)
Fläktdiameter
120 mm
Fläkthöjd
25 mm
Fläktlager
SSO2-lager
Rotationshastighet
700-1200 rpm
Luftflöde
63,3 cfm
Bullernivå
17.8 dBA
Starkströmskontakt
3-stiftskontakt
Dimensioner (BxDxH)
12 cm x 12 cm x 2.5 cm

Allmänt

Produkttyp
Lådfläkt
Förpackningens innehåll
Ultralågbrusadapter (U.L.N.A.), Lågbrusadapter (L.N.A.), 4 vibrationsisolatorer, 3- till 4-stifts strömadapter, förlängningssladd (30 cm)
Bredd
12 cm
Djup
12 cm
Höjd
2.5 cm

Kylfläns och fläkt

Fläktdiameter
120 mm
Fläkthöjd
25 mm
Fläktlager
SSO2-lager
Rotationshastighet
700-1200 rpm
Luftflöde
63,3 cfm
Lufttryck
1.19 mm
Bullernivå
17.8 dBA
Starkströmskontakt
3-stiftskontakt
Startspänning
12 V

Diverse

Monteringssats
Inkluderat
MTBF (genomsnittstid mellan fel)
150,000 timme/timmar
