Varunummer: 2662222

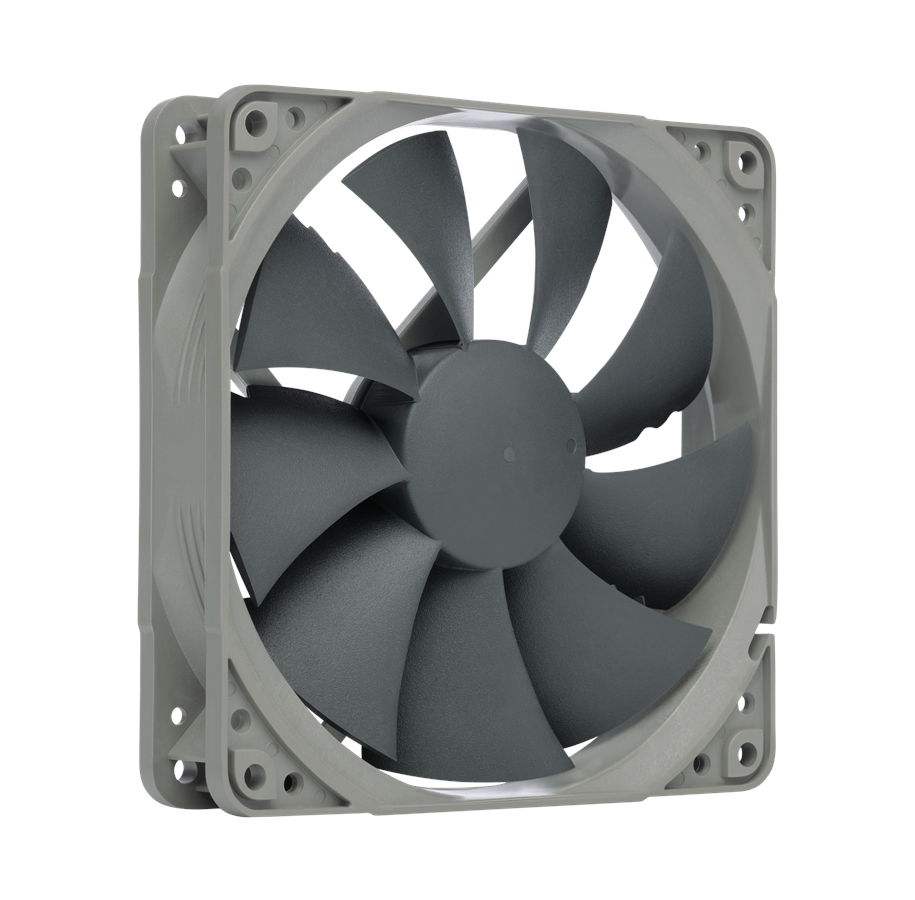

Noctua NF-P12 redux-1300 PWM - Chassi fläkt - 120mm - Svart - 20 dBA

Cabinet cooler, size: 120mm x 120mm x 25mm (HxWxD), noise level: max 19.8 dBA, air flow: max 54,3 CFM, fan RPM: 300 -1300 ±10%, PWM controlled, with a four-pin motherboard connector and black/gray color scheme.
Läs mer
I lager
176,00 kr 140,80 kr exkl. moms
Billigaste frakt: 49,00 kr
5 st. I lager, 1-2 vardagars förväntad leveranstid

Proven NF-P12 design

Proven NF-P12 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-P12. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-P12 has become an established reference for quiet 120mm fans.
Streamlined redux edition

Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.
Pressure-optimised Nine-Blade Design

Pressure-optimised Nine-Blade Design

Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P12's nine-blade impeller provides outstanding pressure and airflow performance.
Vortex-Control Notches

Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.
Custom-designed PWM IC with SCD

Custom-designed PWM IC with SCD

Supporting fully automatic PWM speed control, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
SSO-Bearing

SSO-Bearing

Combining the proven concept of hydrodynamic bearing with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested technology has become synonymous with supremely quiet operation and exceptional long-term stability.
Optional accessories

Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.
Colour-customisable with NA-SAVP1 anti-vibration pads

Colour-customisable with NA-SAVP1 anti-vibration pads

The fan’s frame can be outfitted with Noctua’s chromax line NA-SAVP1 anti-vibration pads. Available in black, red, blue, white, green and yellow, these pads not only damp minute vibrations but also allow the fan to be colour-customised in order to coordinate it with popular build colour schemes!
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the redux edition models feature an MTTF rating of more than 150.000 hours and come with a full 6-year manufacturer’s warranty.

Producent
Varunummer
2662222
Modell
NF-P12 redux-1300 PWM
EAN
9010018100358
Till producentens hemsida
Lämplig placering
Processor
Modell
Fan
Fläktdiameter
12 cm
Rotationshastighet (min)
300 RPM
Rotationshastighet (max)
1300 RPM
Ljudnivå (hög hastighet)
19,8 dB
Luftflöde
92,3 m³/h
Maximalt lufttryck
1,68 mmH2O
Lagertyp
Self-Stabilising Oil-pressure (SSO) bearing
Produktens färg
Svart
Antal fläktblad
9
Fan kontakt
4-stift
Strömförbrukning (vanlig)
0,6 W
Spänning
12 V
Uppskattad strömförbrukning
0,05 A
Bredd
120 mm
Djup
120 mm
Höjd
25 mm
Kabellängd
0,4 m
Medeltid mellan fel (MTTF)
150000 h
Harmonized System (HS)-kod
84733080

Prestanda

Lämplig placering
Processor
Modell
Fan
Fläktdiameter
12 cm
Rotationshastighet (min)
300 RPM
Rotationshastighet (max)
1300 RPM
Ljudnivå (hög hastighet)
19,8 dB
Luftflöde
92,3 m³/h
Maximalt lufttryck
1,68 mmH2O
Lagertyp
Self-Stabilising Oil-pressure (SSO) bearing

Design

Produktens färg
Svart
Antal fläktblad
9
Fan kontakt
4-stift

Strömtillförsel

Strömförbrukning (vanlig)
0,6 W
Spänning
12 V
Uppskattad strömförbrukning
0,05 A

Vikt & dimension

Bredd
120 mm
Djup
120 mm
Höjd
25 mm
Kabellängd
0,4 m

Övrigt

Medeltid mellan fel (MTTF)
150000 h

Logistikdata

Harmonized System (HS)-kod
84733080
