Varunummer: 2674887

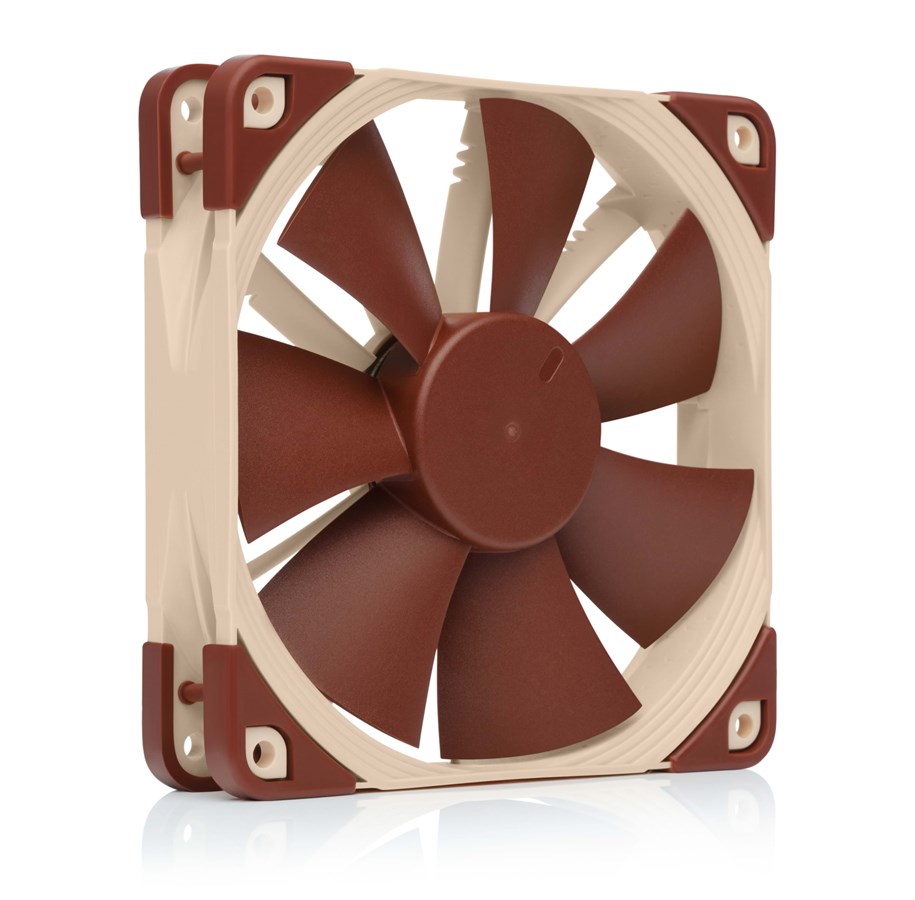

Noctua NF-F12 5V PWM - Chassi fläkt - 120mm - Brun - 22 dBA
Cabinet cooler, size: 120mm x 120mm x 25mm (HxWxD), noise level: max 22.4 dBA, air flow: max 55 CFM, fan RPM: 300 -1500 ±10%, PWM controlled, with a four-pin motherboard connection and operates at five volts. The color of the fan is brown.
273,00 kr
218,40 kr exkl. moms
Billigaste frakt: 49,00 kr
Beställningsvara, 12-13 vardagar leveranstid
Award-winning NF-F12 designHaving received more than 100 awards and recommendations from the international press, Noctua's NF-F12 has become a proven premium choice for 120mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world. |
5V PWM version5V fans are used in various devices and applications. With the included USB power adaptor cable and OmniJoin™ adaptor set, the NF-F12 5V PWM is a proven premium solution that gives you full flexibility both for replacing existing 5V fans and for new, custom applications. |
Focused Flow™ frameDesigned for pressure demanding applications such as heatsinks and radiators, the Focused Flow™ frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds. |
Varying Angular Distance and Vortex Control NotchesThe NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear. |
Heptaperf™ ImpellerCustom designed for the new Focused Flow™ frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf™ impeller has been carefully optimised to achieve a perfect balance between power and quietness. |
AAO frameNoctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency. |
Stepped Inlet DesignNoctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments. |
Inner Surface MicrostructuresWith the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency. |
Integrated anti-vibration padsIntegrated anti-vibration pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard screws and other mounting systems. |
Custom-designed PWM IC with SCDSupporting fully automatic PWM speed control, the NF-F12 5V PWM uses Noctua's novel, custom-designed NE-FD3 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds. |
Polarity protectionAs many devices using 5V fans feature proprietary connectors, and documentation of the pin alignment may not be available, the fan features an integrated diode for polarity protection. This way, you're on the safe side if you accidentally connect it with reverse polarity. |
SSO2 BearingThe NF-F12 is the first fan to feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability. |
Metal bearing shellIn order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the NF-F12 sports a CNC milled bearing shell made entirely from brass. |
OmniJoin™ Adaptor SetMany devices featuring 5V fans use proprietary fan headers, so the NF-F12 5V PWM comes with Noctua’s OmniJoin adaptor set. Just cut the original fan’s cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-F12 5V PWM to proprietary fan headers! |
USB power adaptor cableThe fan includes a USB power adaptor cable that allows it to run on power banks, devices with USB host ports or USB power supplies such as those used for smartphones, giving you near endless possibilities for using the fan in your home, in your car or wherever a need for cooling occurs! |
Extensive cabling optionsThe fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved. |
6-year manufacturer’s warrantyNoctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-F12 features an MTTF rating of more than 150.000 hours and comes with a full 6-year manufacturer's warranty. |
Producent
Varunummer
2674887
Modell
NF-F12 5V PWM
EAN
9010018100273
Till producentens hemsida
Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
12 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
300 RPM
Rotationshastighet (max)
1500 RPM
Ljudnivå (hög hastighet)
22,4 dB
Luftflöde
93,4 m³/h
Maximalt lufttryck
2,61 mmH2O
Stöd för pulsbreddsmodulering (PWM)
Ja
Lagertyp
Self-Stabilising Oil-pressure Bearing (SSO)
Produktens färg
Beige, Brun
Antal fläktar
1 fläkt/-ar
Antal fläktblad
7
Fan kontakt
4-stift
Certifiering
CE
Strömförsörjning
0,75 W
Spänning
5 V
Högsta strömstyrka
0,15 A
Bredd
120 mm
Djup
25 mm
Höjd
120 mm
Kabellängd
0,3 m
Förpackningens bredd
150 mm
Låddjup
34 mm
Förpackningens höjd
210 mm
Vikt inkl. förpackning
330 g
Certifikat för överensstämmelse
RoHS
Skruvar medföljer
Ja
Antivibrationssystem
Ja
Medeltid mellan fel (MTTF)
150000 h
Harmonized System (HS)-kod
84733080
Ytterförpackningens bredd
350 mm
Ytterförpackningens längd
360 mm
Ytterförpackningens höjd
380 mm
Ytterförpackningens bruttovikt
13,1 kg
Produkter per ytterförpackning
36 styck
Prestanda
Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
12 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
300 RPM
Rotationshastighet (max)
1500 RPM
Ljudnivå (hög hastighet)
22,4 dB
Luftflöde
93,4 m³/h
Maximalt lufttryck
2,61 mmH2O
Stöd för pulsbreddsmodulering (PWM)
Ja
Lagertyp
Self-Stabilising Oil-pressure Bearing (SSO)
Design
Produktens färg
Beige, Brun
Antal fläktar
1 fläkt/-ar
Antal fläktblad
7
Fan kontakt
4-stift
Certifiering
CE
Strömtillförsel
Strömförsörjning
0,75 W
Spänning
5 V
Högsta strömstyrka
0,15 A
Vikt & dimension
Bredd
120 mm
Djup
25 mm
Höjd
120 mm
Kabellängd
0,3 m
Förpackningens bredd
150 mm
Låddjup
34 mm
Förpackningens höjd
210 mm
Vikt inkl. förpackning
330 g
Tekniska detaljer
Certifikat för överensstämmelse
RoHS
Förpackningens innehåll
Skruvar medföljer
Ja
Övrigt
Antivibrationssystem
Ja
Medeltid mellan fel (MTTF)
150000 h
Logistikdata
Harmonized System (HS)-kod
84733080
Ytterförpackningens bredd
350 mm
Ytterförpackningens längd
360 mm
Ytterförpackningens höjd
380 mm
Ytterförpackningens bruttovikt
13,1 kg
Produkter per ytterförpackning
36 styck
Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
