Varunummer: 2595710

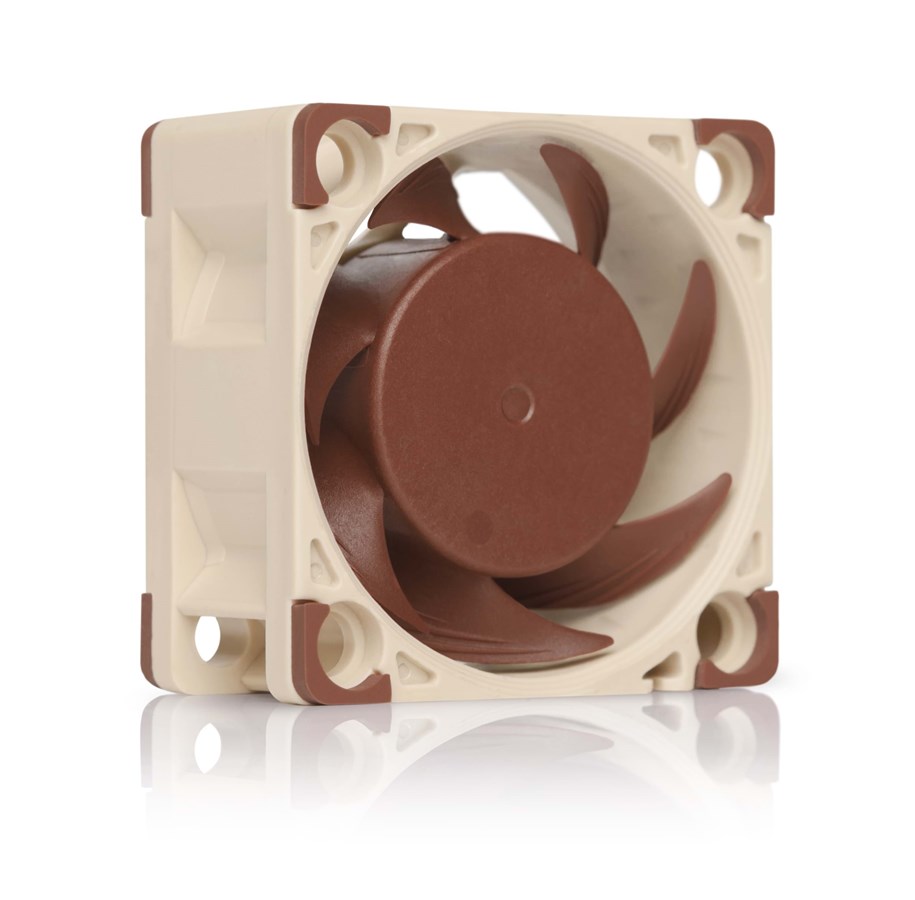

Noctua NF-A4x20 FLX - Chassi fläkt - 40mm - Brun - 15 dBA

Cabinet cooler, size: 40mm x 40mm x 20mm (HxWxD), noise level: 12.2 - 14.9 dBA, air flow: 4.06- 5.5 CFM, fan RPM: 3700 -5000 ±10%, with a three-pin motherboard connection and brown color.
Läs mer
I lager
181,00 kr 144,80 kr exkl. moms
Billigaste frakt: 49,00 kr
15+ st. I lager, 1-2 vardagars förväntad leveranstid

Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and Noctua’s AAO frame, the NF-A4x20 is a highly optimised, premium-quality quiet fan in size 40x20mm. The FLX version provides 5000/4400/3700rpm speed settings via the supplied Low-Noise Adaptors and includes the OmniJoin™ Adaptor Set for easy connection to proprietary fan headers. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make it an elite choice for the highest demands.

40x20mm size

40x20mm size

Compared to Noctua’s award-winning NF-A4x10, the NF-A4x20 is twice as thick, which allows for increased static pressure performance and makes the NF-A4x20 ideal for demanding applications with high flow resistance.
Flow Acceleration Channels

Flow Acceleration Channels

The NF-A4x20 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
AAO frame

AAO frame

Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
Stepped Inlet Design

Stepped Inlet Design

Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
Inner Surface Microstructures

Inner Surface Microstructures

With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads

Integrated Anti-Vibration Pads made from extra-soft silicone minimise the transmission of minute vibrations while maintaining full compatibility with all standard mounting systems and fan clips used on heatsinks.
Smooth Commutation Drive 2

Smooth Commutation Drive 2

The latest version of Noctua's advanced Smooth Commutation Drive system ensures superb running smoothness by eliminating torque variations and switching noises. This makes the fan remarkably quiet even at very close distances.
SSO2 bearing

SSO2 bearing

The NF-A4x20 features the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
3 speed settings for full flexibility

3 speed settings for full flexibility

Providing 5000, 4400 and 3700 rpm speed settings via the supplied Low-Noise and Ultra-Low-Noise Adapters, the NF-A4x20 FLX (Flexibility) can be fine-tuned for superior airflow or maximum quietness.
OmniJoin™ adaptor set

OmniJoin™ adaptor set

Many devices featuring 40mm fans use proprietary fan headers, so the NF-A4x20 comes with Noctua's OmniJoin™ adaptor set. Just cut the original fan's cable, fix it to the adaptor using the supplied 3M Scotchlok™ connectors and you can plug the NF-A4x20 to proprietary fan headers!
Extensive cabling options

Extensive cabling options

The fan's short 20cm primary cable minimises cable clutter in typical applications while the supplied 30cm extension provides extended reach when necessary. Both cables are fully sleeved and the supplied 3:4 pin adaptor allows the connection of the fan directly to the power supply.
6-year manufacturer’s warranty

6-year manufacturer’s warranty

Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the NF-A4x20 features an MTTF of more than 150.000 hours rating and comes with a full 6-year manufacturer’s warranty.

Producent
Varunummer
2595710
Modell
NF-A4x20 FLX
EAN
9010018100112
Till producentens hemsida
Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
4 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
3700 RPM
Rotationshastighet (max)
5000 RPM
Rotationshastighet med LNA (max)
4400 RPM
Ljudnivå (låg hastighet)
8,5 dB
Ljudnivå (hög hastighet)
14,9 dB
Ljudnivå med LNA (max)
12,2 dB
Luftflöde
9,4 m³/h
Luftflöde med LNA (max)
8,3 m³/h
Minsta lufttryck
1,23 mmH2O
Maximalt lufttryck
2,26 mmH2O
Lagertyp
Self-Stabilising Oil-pressure Bearing (SSO)
Produktens färg
Beige, Brun
Fan kontakt
3-stift
Strömförsörjning
0,6 W
Spänning
12 V
Högsta strömstyrka
0,05 A
Bredd
40 mm
Djup
40 mm
Höjd
20 mm
Kabel inkluderad
Fan
Skruvar medföljer
Ja
Lågljudsadapter (LNA)
Ja
Monteringsplatta (B x D)
32 x 32 mm
Medeltid mellan fel (MTTF)
150000 h
Harmonized System (HS)-kod
84733080

Prestanda

Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
4 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
3700 RPM
Rotationshastighet (max)
5000 RPM
Rotationshastighet med LNA (max)
4400 RPM
Ljudnivå (låg hastighet)
8,5 dB
Ljudnivå (hög hastighet)
14,9 dB
Ljudnivå med LNA (max)
12,2 dB
Luftflöde
9,4 m³/h
Luftflöde med LNA (max)
8,3 m³/h
Minsta lufttryck
1,23 mmH2O
Maximalt lufttryck
2,26 mmH2O
Lagertyp
Self-Stabilising Oil-pressure Bearing (SSO)

Design

Produktens färg
Beige, Brun
Fan kontakt
3-stift

Strömtillförsel

Strömförsörjning
0,6 W
Spänning
12 V
Högsta strömstyrka
0,05 A

Vikt & dimension

Bredd
40 mm
Djup
40 mm
Höjd
20 mm

Förpackningens innehåll

Kabel inkluderad
Fan
Skruvar medföljer
Ja
Lågljudsadapter (LNA)
Ja

Övrigt

Monteringsplatta (B x D)
32 x 32 mm
Medeltid mellan fel (MTTF)
150000 h

Logistikdata

Harmonized System (HS)-kod
84733080
