Varunummer: 2661526

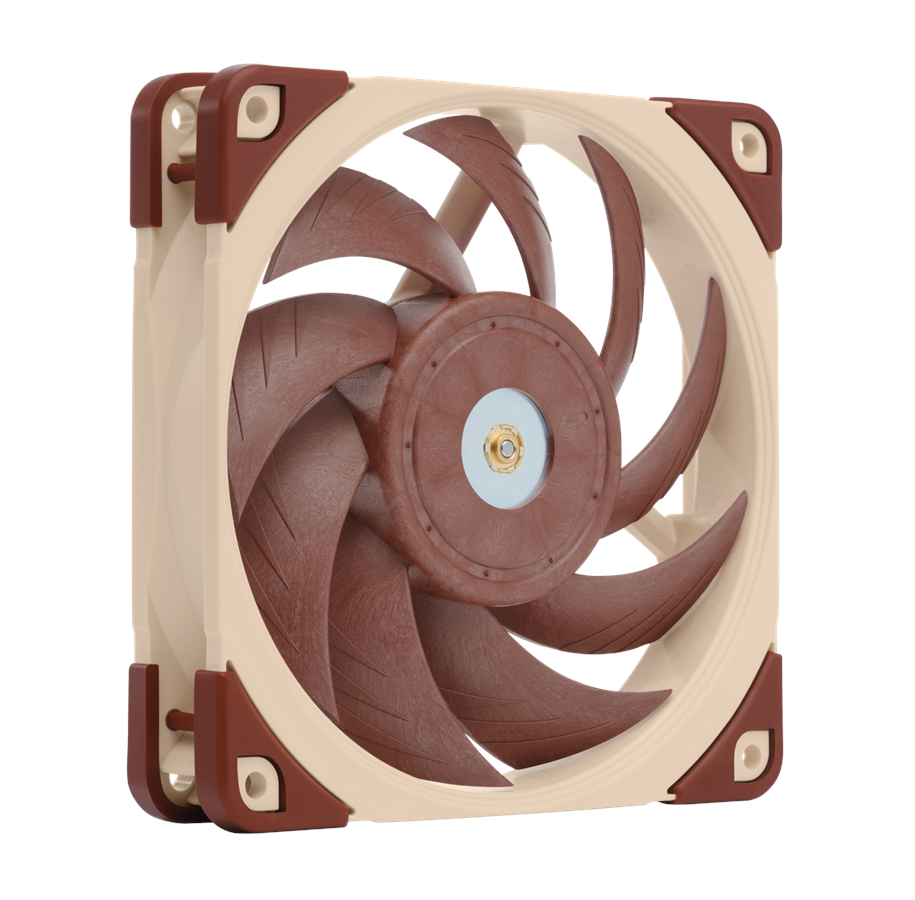

Noctua NF-A12x25 PWM - Chassi fläkt - 120mm - Brun - 22 dBA

Cabinet cooler, size: 120mm x 120mm x 25mm (HxWxD), noise level: 18.8 - 22.06 dBA, air flow: max 60.1 CFM, fan RPM: 450 -2000 ±10%, PWM controlled, with a four-pin motherboard connection and brown color.

I lager
352,00 kr 281,60 kr exkl. moms
Billigaste frakt: 49,00 kr
2 st. I lager, 1-2 vardagars förväntad leveranstid

The NF-A12x25 is a highly optimized next-generation 120mm fan that integrates Noctua's latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimization) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua's A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it's in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 4-pin PWM version supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.

Producent
Varunummer
2661526
Modell
NF-A12X25 PWM
EAN
9010018100396
Till producentens hemsida
Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
12 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
450 RPM
Rotationshastighet (max)
2000 RPM
Rotationshastighet med LNA (max)
1700 RPM
Ljudnivå (hög hastighet)
22,6 dB
Ljudnivå med LNA (max)
18,8 dB
Luftflöde
102,1 m³/h
Luftflöde med LNA (max)
84,5 m³/h
Minsta lufttryck
1,65 mmH2O
Maximalt lufttryck
2,34 mmH2O
Lagertyp
Self-Stabilising Oil-pressure Bearing (SSO)
Produktens färg
Brun
Material
Flytande kristallpolymer (LCP)
Fan kontakt
4-stift
Strömförbrukning (vanlig)
1,68 W
Spänning
12 V
Högsta strömstyrka
0,14 A
Bredd
120 mm
Djup
25 mm
Höjd
120 mm
Medeltid mellan fel (MTTF)
150000 h
Harmonized System (HS)-kod
84733080

Prestanda

Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
12 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
450 RPM
Rotationshastighet (max)
2000 RPM
Rotationshastighet med LNA (max)
1700 RPM
Ljudnivå (hög hastighet)
22,6 dB
Ljudnivå med LNA (max)
18,8 dB
Luftflöde
102,1 m³/h
Luftflöde med LNA (max)
84,5 m³/h
Minsta lufttryck
1,65 mmH2O
Maximalt lufttryck
2,34 mmH2O
Lagertyp
Self-Stabilising Oil-pressure Bearing (SSO)

Design

Produktens färg
Brun
Material
Flytande kristallpolymer (LCP)
Fan kontakt
4-stift

Strömtillförsel

Strömförbrukning (vanlig)
1,68 W
Spänning
12 V
Högsta strömstyrka
0,14 A

Vikt & dimension

Bredd
120 mm
Djup
25 mm
Höjd
120 mm

Övrigt

Medeltid mellan fel (MTTF)
150000 h

Logistikdata

Harmonized System (HS)-kod
84733080

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
