Varunummer: 2662218

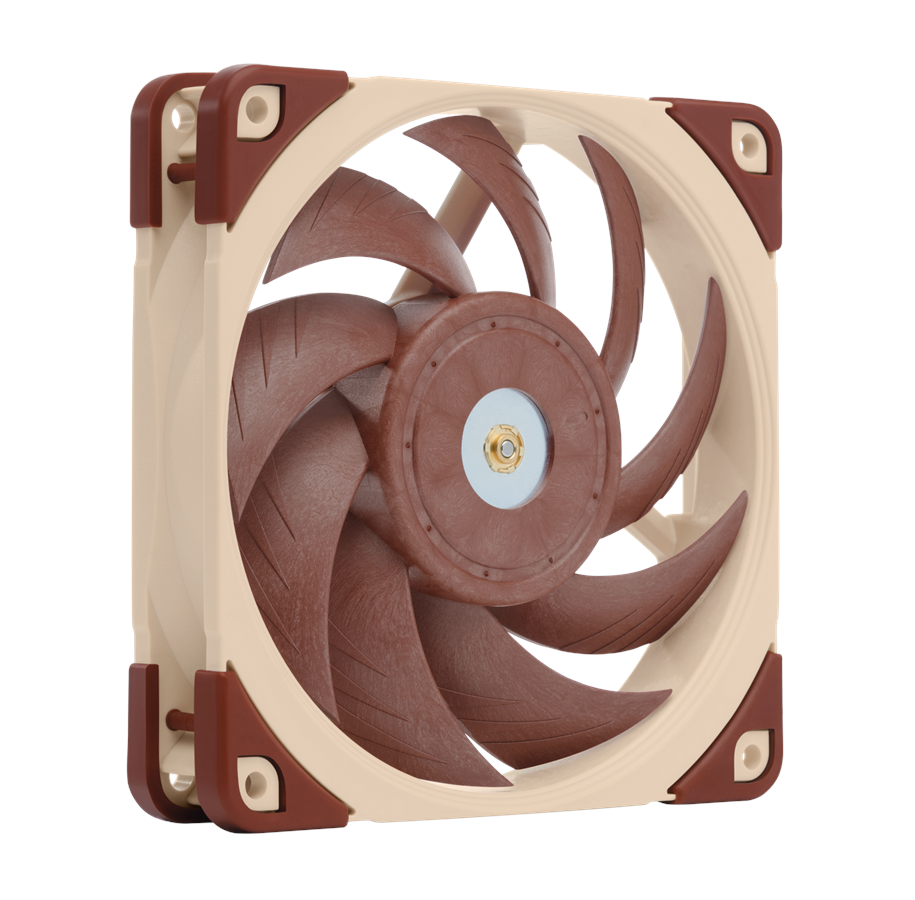

Noctua NF-A12x25 FLX - Chassi fläkt - 120mm - Brun - 22 dBA

Cabinet cooler, size: 120mm x 120mm x 25mm (HxWxD), noise level: 18.8 - 22.06 dBA, air flow: max 60.1 CFM, fan RPM: 1350 -2000 ±10%, compatible with both 3-pin and 4-pin motherboards, brown color.

352,00 kr 281,60 kr exkl. moms
Billigaste frakt: 49,00 kr
Beställningsvara, 13-14 vardagar leveranstid

The NF-A12x25 is a highly optimized next-generation 120mm fan that integrates Noctua's latest innovations in aerodynamic engineering in order to achieve an unprecedented level of quiet cooling performance. It takes state-of-the-art technologies such as the AAO (Advanced Acoustic Optimization) frame or Flow Acceleration Channels and combines them with a record tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Following the approach of Noctua's A-series, the NF-A12x25 is a true all-rounder that yields superb results in all types of usage, regardless of whether it's in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on heatsinks and watercooling radiators. The 3-pin FLX version provides 2000/1700/1350rpm speed settings via the supplied Low-Noise Adaptors so as to give full flexibility in configuring the fan for maximum cooling capacity or near-silent acoustics. Topped off with exceptional running smoothness, Noctua's reference-class SSO2 bearing, a rich bundle of accessories, the NF-A12x25 is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for the most discerning demands.

Producent
Varunummer
2662218
Modell
NF-A12x25 FLX
EAN
9010018100389
Till producentens hemsida
Lämplig placering
Universal
Modell
Fan
Fläktdiameter
12 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Antal hastigheter
3
Rotationshastighet (min)
1350 RPM
Rotationshastighet (max)
2000 RPM
Ljudnivå (låg hastighet)
14,2 dB
Ljudnivå (hög hastighet)
22,6 dB
Luftflöde
102,1 m³/h
Minsta lufttryck
64,5 mmH2O
Maximalt lufttryck
2,34 mmH2O
Lagertyp
Self-Stabilising Oil-pressure (SSO) bearing
Antal per förpackning
1 styck
Medeltid mellan fel (MTBF)
150000 h
Produktens färg
Beige, Brun
Material
LCP (Liquid Crystal Polymer)
Antal fläktar
1 fläkt/-ar
Antal fläktblad
9
Fan kontakt
3-stift
Uppmätt spänning
12 V
Högsta strömstyrka
0,14 A
Mått, fläkt (B x D x H)
120 x 120 x 25 mm
Kabel inkluderad
Fan
Skruvar medföljer
Ja
Harmonized System (HS)-kod
84733080

Prestanda

Lämplig placering
Universal
Modell
Fan
Fläktdiameter
12 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Antal hastigheter
3
Rotationshastighet (min)
1350 RPM
Rotationshastighet (max)
2000 RPM
Ljudnivå (låg hastighet)
14,2 dB
Ljudnivå (hög hastighet)
22,6 dB
Luftflöde
102,1 m³/h
Minsta lufttryck
64,5 mmH2O
Maximalt lufttryck
2,34 mmH2O
Lagertyp
Self-Stabilising Oil-pressure (SSO) bearing
Antal per förpackning
1 styck
Medeltid mellan fel (MTBF)
150000 h

Design

Produktens färg
Beige, Brun
Material
LCP (Liquid Crystal Polymer)
Antal fläktar
1 fläkt/-ar
Antal fläktblad
9
Fan kontakt
3-stift

Strömtillförsel

Uppmätt spänning
12 V
Högsta strömstyrka
0,14 A

Vikt & dimension

Mått, fläkt (B x D x H)
120 x 120 x 25 mm

Förpackningens innehåll

Kabel inkluderad
Fan
Skruvar medföljer
Ja

Logistikdata

Harmonized System (HS)-kod
84733080
