Varunummer: 2829104

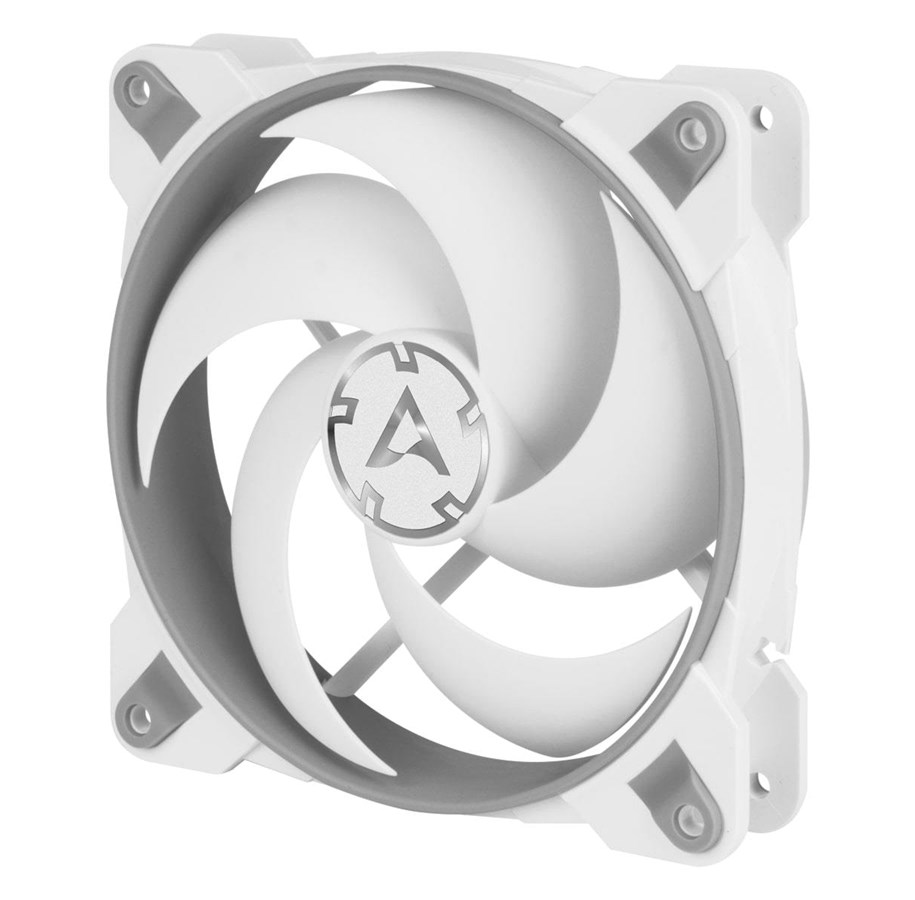

Arctic BioniX P140 - Grey/White - Chassi fläkt - 140mm - Vit - 24 dBA
Chassi fläkt, 140mm x 140mm x 28mm (höjd x bredd x djupt), støjnivå: max 0.45 sone (∼ 24 dBa), luftflöde max 77.6 CFM, max statiskt tryck 2.85 mmH2O, fläkthastighet: 200 - 1950 ±10% RPM, PWM-kontrollerad, kullager typ: Fluid Dynamic Bearing (FDB), Moderkortsanslutning: 4-pins, Färg: grå / vit.
175,00 kr
140,00 kr exkl. moms
Billigaste frakt: 49,00 kr
Leverantör, 3-4 vardagar leveranstid
Optimised for Static Pressure
During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
During the development of the new BioniX P140, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P140 is particularly suitable for use on heatsinks and radiators.
More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P140 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.
Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.
Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.
High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Producent
Varunummer
2829104
Modell
ACFAN00160A
EAN
4895213702331
Till producentens hemsida
Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
14 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
200 RPM
Rotationshastighet (max)
1950 RPM
Ljudnivå
0,45 sone
Maximalt luftflöde
77,6 cfm
Luftflöde
131,92 m³/h
Maximalt lufttryck
2,85 mmH2O
Stöd för pulsbreddsmodulering (PWM)
Ja
Lagertyp
Vätskedynamiskt lager (FDB)
Produktens färg
Grå, Vit
Antal fläktar
1 fläkt/-ar
Antal fläktblad
5
Fan kontakt
4-pin + 4-pin
Strömförbrukning (vanlig)
1,8 W
Spänning
12 V
Uppskattad strömförbrukning
0,15 A
Bredd
140 mm
Djup
28 mm
Höjd
140 mm
Vikt
181 g
Kabellängd
0,4 m
Förpackningens bredd
148 mm
Låddjup
35 mm
Förpackningens höjd
148 mm
Vikt inkl. förpackning
230 g
Förpackningstyp
Låda
Skruvar medföljer
Ja
Antal skruvar
4
Monteringsplatta (B x D)
125 x 125 mm
Ursprungsland
Kina
Harmonized System (HS)-kod
84733080
Prestanda
Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
14 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
200 RPM
Rotationshastighet (max)
1950 RPM
Ljudnivå
0,45 sone
Maximalt luftflöde
77,6 cfm
Luftflöde
131,92 m³/h
Maximalt lufttryck
2,85 mmH2O
Stöd för pulsbreddsmodulering (PWM)
Ja
Lagertyp
Vätskedynamiskt lager (FDB)
Design
Produktens färg
Grå, Vit
Antal fläktar
1 fläkt/-ar
Antal fläktblad
5
Fan kontakt
4-pin + 4-pin
Strömtillförsel
Strömförbrukning (vanlig)
1,8 W
Spänning
12 V
Uppskattad strömförbrukning
0,15 A
Vikt & dimension
Bredd
140 mm
Djup
28 mm
Höjd
140 mm
Vikt
181 g
Kabellängd
0,4 m
Förpackningens bredd
148 mm
Låddjup
35 mm
Förpackningens höjd
148 mm
Vikt inkl. förpackning
230 g
Förpackningens innehåll
Förpackningstyp
Låda
Skruvar medföljer
Ja
Antal skruvar
4
Övrigt
Monteringsplatta (B x D)
125 x 125 mm
Ursprungsland
Kina
Logistikdata
Harmonized System (HS)-kod
84733080
