Varunummer: 2735126

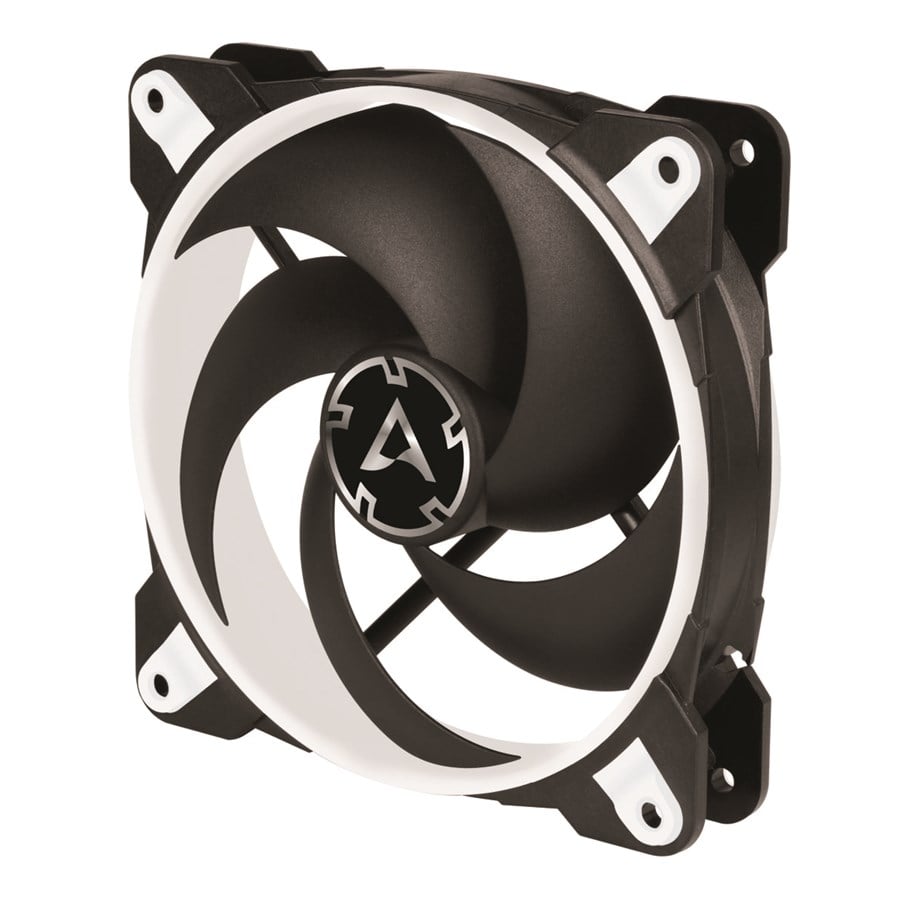

Arctic BioniX P120 - White/Black - Chassi fläkt - 120mm - Svart - 24 dBA

Chassi fläkt, 120mm x 120mm x 27mm (höjd x bredd x djupt), støjnivå: max 0.45 sone (∼ 24 dBa), luftflöde max 67.56 CFM, max statiskt tryck 2.75 mmH2O, fläkthastighet: 200 - 2100 ±10% RPM, PWM-kontrollerad, kullager typ: Fluid Dynamic Bearing (FDB), Moderkortsanslutning: 4-pins, Färg: vit / svart.

179,00 kr 143,20 kr exkl. moms
Billigaste frakt: 49,00 kr
Beställningsvara, 7-8 vardagar leveranstid

Optimised for Static Pressure
During the development of the new BioniX P120, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the BioniX P120 is particularly suitable for use on heatsinks and radiators. 10° C lower motor temperature doubles the life span. The BioniX gaming fans have a four times longer service life through low coil temperature. Therefore, we extend the warranty to 10 years.

Strong Cooling Performance
Numerous improvements, such as an updated engine technology and a newly developed fan design, have noticeably increased the performance of P-fans. In internal performance tests leveled to 28 dB (A), the new P-fans left many competitors behind.

More Efficient Technology
The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new BioniX P120 to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without comprimising the performance.

Maximum Quietness, Minimum Vibration
Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.

Extended Life Span
A 10° C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature.

High Quality Bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.

Producent
Varunummer
2735126
Modell
ACFAN00116A
EAN
4895213701297
Till producentens hemsida
Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
12 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
200 RPM
Rotationshastighet (max)
2100 RPM
Ljudnivå (hög hastighet)
25,5 dB
Ljudnivå
0,45 sone
Maximalt luftflöde
67,56 cfm
Luftflöde
114,79 m³/h
Stöd för pulsbreddsmodulering (PWM)
Ja
Lagertyp
Vätskedynamiskt lager (FDB)
Produktens färg
Svart, Vit
Antal fläktar
1 fläkt/-ar
Antal fläktblad
5
Fan kontakt
4-pin + 4-pin
Strömförbrukning (vanlig)
1,56 W
Spänning
12 V
Uppskattad strömförbrukning
0,13 A
Bredd
120 mm
Djup
120 mm
Höjd
27 mm
Vikt
140 g
Kabellängd
0,4 m
Förpackningens bredd
130 mm
Låddjup
125 mm
Förpackningens höjd
34 mm
Vikt inkl. förpackning
175 g
Certifikat för överensstämmelse
RoHS
Förpackningstyp
Låda
Skruvar medföljer
Ja
Antal skruvar
4
Monteringsplatta (B x D)
105 x 105 mm
Ursprungsland
Kina
Harmonized System (HS)-kod
84733080

Prestanda

Lämplig placering
Datorväska
Modell
Fan
Fläktdiameter
12 cm
Stödd processor uttag
Stöds inte
Kompatibla processorer
Stöds inte
Rotationshastighet (min)
200 RPM
Rotationshastighet (max)
2100 RPM
Ljudnivå (hög hastighet)
25,5 dB
Ljudnivå
0,45 sone
Maximalt luftflöde
67,56 cfm
Luftflöde
114,79 m³/h
Stöd för pulsbreddsmodulering (PWM)
Ja
Lagertyp
Vätskedynamiskt lager (FDB)

Design

Produktens färg
Svart, Vit
Antal fläktar
1 fläkt/-ar
Antal fläktblad
5
Fan kontakt
4-pin + 4-pin

Strömtillförsel

Strömförbrukning (vanlig)
1,56 W
Spänning
12 V
Uppskattad strömförbrukning
0,13 A

Vikt & dimension

Bredd
120 mm
Djup
120 mm
Höjd
27 mm
Vikt
140 g
Kabellängd
0,4 m
Förpackningens bredd
130 mm
Låddjup
125 mm
Förpackningens höjd
34 mm
Vikt inkl. förpackning
175 g

Tekniska detaljer

Certifikat för överensstämmelse
RoHS

Förpackningens innehåll

Förpackningstyp
Låda
Skruvar medföljer
Ja
Antal skruvar
4

Övrigt

Monteringsplatta (B x D)
105 x 105 mm
Ursprungsland
Kina

Logistikdata

Harmonized System (HS)-kod
84733080

Ovanstående information och specifikationer är vägledande och kan utan förvarning ändras av producenten. Alla uppgifter lämnas med reservation för tryckfel, och bilder är vägledande. Vissa texter kan vara autogenererade eller maskinöversatta och kan därför ge texter som kan vara missvisande.
